LED Technology

To Deliver Performance & Choice

ELEMENT engineers are constantly working with the latest technologies to deliver LED illumination with a longer life, less energy consumption, greater light output, and minimal color shift or degradation. As LED technology advances and lighting designers become more discerning and demanding ELEMENT fixtures are continually updated with cutting edge options and quality.

  • Choice of lumen output to create ideal lighting designs appropriate to an environment. Max Output: 3572 lumens
  • Multiple CCT static white light options, 3 step color binning (or better) to ensure consistency fixture to fixture
  • Warm Color Dimming to mimic traditional incandescent dimming, including solutions that follow the black body curve
  • Multiple CRI options for accurate and consistent color rendering appropriate to an environment
  • Multiple Driver options to meet numerous dimming protocols
  • Agnostic fixture design accepts a wide variety of LED Module options: Xicato, Xicato Artist Series, Lumenetix Programmable White, Lumenetix Warm Color Dimming, Citizen Static White and Warm Color Dimming
  • Long Life LEDs: L70 - 50,000 Hours as our minimum

Led Lamping

To Meet Exacting Performance Criteria

ELEMENT downlight platforms were specifically designed to offer specifiers a variety of LED solutions. The innovative ELEMENT design allows our downlight series to maintain an LED agnostic platform, easily adapting to today’s most relevant LED offerings as well as new LED technologies as they are developed in the future. This flexibility empowers the design community to select an LED solution that best fits the design criteria and performance preferences for a given project, while maintaining the specifier’s confidence in ELEMENT’s thoughtful engineering and aesthetic appeal. Today ELEMENT offers a variety of LED modules, each with a distinct set of features and benefits.

Set The Mood

CITIZEN WARM COLOR DIMMING (ELEMENT 2", 3" & 4")

  • Best in Class Output and Efficacy
  • Dimmable with a variety of different dimming protocols, including Triac/ELV
  • Reminiscent of the warm dim glow of a traditional incandescent source

LUMENTIX PROGRAMMABLE WHITE (ELEMENT 3" & 4")

  • Customizable illumination profile: tunable white, controlled saturation and hue, dynamic dimming
  • Controllable via 2 sets 0-10v, IOS app, light commissioning tool or DMX

LUMENTIX WARM COLOR DIMING (ELEMENT 3" & 4")

  • Mimics traditional incandescent source reducing color temperature as dimmed down to 1800K warm glow while staying on the black body curve
  • 0-10V dimming only

STATIC WHITE

HIGH PERFORMANCE CITIZEN LED (ELEMENT 2", 3" & 4", MULTIPLES & BYOM)

  • Long life with excellent color over angle control
  • Optimized lumens/watt efficacy
  • Precision TIR optics for optimal beam control

XICATO FEATURING COLD PHOSPHOR (ELEMENT 3" & 4")

  • Premium quality of light maintained over time
  • Artist Series with 98+ CRI when color quality matters most

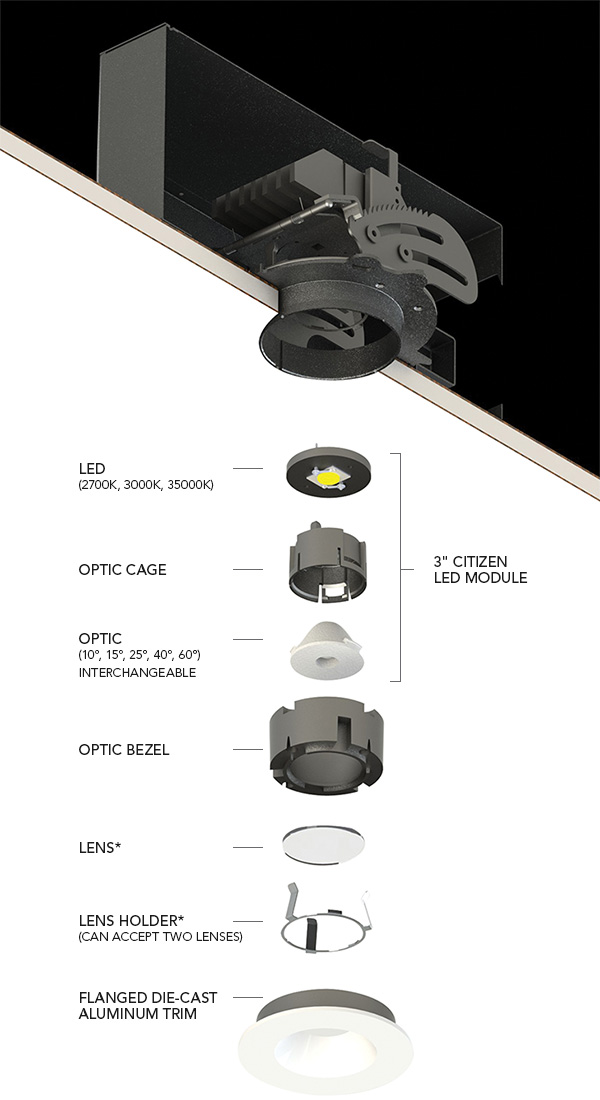

ELEMENT 3" Downlight Breakdown

DIMMING OPTIONS

Controls are becoming an increasingly integral part of design, allowing precision light layering that supports circadian rhythm, mood setting, or dramatic effects. With an increased focus on quality of light and energy consumption, ELEMENT offers a variety of solutions for even the most discerning dimming needs. The list below is the full range of dimming protocols offered throughout the ELEMENT line of recessed products. Consult product specification sheets for specific dimming protocols available for the wide variety of housing configurations for applicable protocols.

  • Triac
  • ELV
  • 0-10v standard 5%
  • eldoLED 0-10V 1%
  • eldoLED 0-10V 0.1%
  • eldoLED Dali 0.1%
  • DMX
  • Lutron Hi-Lume EcoSystem Fade-to-Black
  • Lutron Line Voltage PWM 1%
  • Bluetooth

DOWNLIGHT MODULES SELECTION GUIDE


Citizen Citizen Warm Dim Xicato Lumenetix Warm Color Dimming Lumenetix Programmable White✝
3" 4" 3" 4" 3" 4"
High Output Low Output High Output Low Output High Output Low Output High Output Low Output Standard Series Artist Series Standard Series Artist Series 3" 4" 3" 4"
*See Element-Lighting.com for Dimmer Compatibility. **3500K Xicato Module not available for artist series. ✝Controls Saturation and Hue for Full Color Spectrum.
Data in Chart Reflect 3000K/80 CRI Values Unless Noted.
Delivered Lumens 1811 / 1676 1319 / 1124 3157 / 2524 2090 / 1670 1320 900 2374 1320 1075 725 1800 1275 675 1075 675 1075
Watts 18 12 32 18 18 12 32 18 15 13 24 22 13 23 14 23
Efficacy 100 / 82 110 / 94 99 / 81 116 / 93 73 75 74 73 72 56 75 58 52 29 48 29
CRI 80+ / 90+ 80+ / 90+ 80+ / 90+ 80+ / 90+ 90+ 90+ 80+ 95+ 80+ 95+ 90+ 90+ 90+ 90+
CBCP 10° - 13,420
15° - 5848
25° - 5416
40° - 3369
10° - 13,420 (low)
18° - 10,240
25° - 8634
40° - 5513
15° - N/A
25° - N/A
40° - 1622
18° - N/A
25° - N/A
40° - 2381
21° - 3184
43° - 1644
60° - 1014
21° - 5306
43° - 2740
60° - 1690
21° - N/A
43° - N/A
60° - 595
21° - N/A
43° - N/A
60° - 992
21° - N/A
43° - N/A
60° - 595
21° - N/A
43° - N/A
60° - 992
CCT Options 2700K,3000K or 3500K 3000K-1800K
Warm Dim
3000K-1800K
Warm Dim
2700K, 3000K
or 3500K**
2700K, 3000K
or 3500K**
3000K, 1800K
Warm Dim
1600K-4000K
Dimming* TRIAC, ELV, 0-10V (Down to 5%)
Lutron Hi-Lume EcoSystem Fade-To-Black or PWM (Down to 1%)
eldoLED 0-10V or Dali (Down to 0%)
0-10V:
Down to 1%
0-10V (2 sets)
Bluetooth, DMX:
Down to 1%

OPTICS

ELEMENT typically utilizes precision TIR optics which capitalize on characteristics unique to LEDs. Custom designed precision TIR optics were developed to optimize light performance and beam control by directing light from the Light Emitting Surface (LES) to the TIR’s internal reflector design which creates a tightly controlled beam. Micro optic “pillows,” unique to ELEMENT, are utilized to ensure the beam is clean, smooth and defined ELEMENT TIR optical controls allow optimized efficacy, beam shape and lux-on-target to deliver a superior experience.

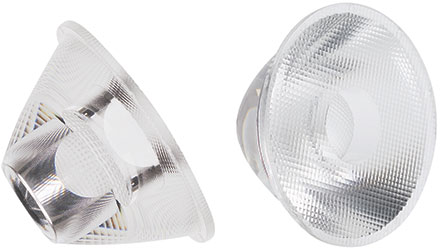

TIR Optic View 1

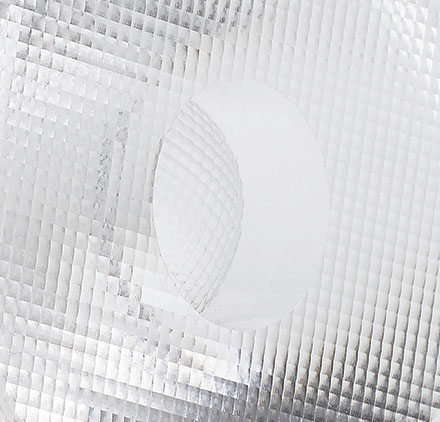

TIR Optic Enlargement

BEAM SPREADS

2" DOWNLIGHTS

20°
20°
30°
30°
40°
40°
60°
60°
Wall Wash
Wall Wash

3" DOWNLIGHTS

10°
10°
15°
15°
21°
*21°
25°
25°
40°
40°
43°
*43°
60°
*60°
Wall Wash
Wall Wash

4" DOWNLIGHTS

10°
10°
18°
18°
21°
*21°
25°
25°
40°
40°
43°
*43°
60°
*60°
Wall Wash
Wall Wash

BYOM / MULTIPLES

20°
20°
30°
30°
40°
40°
60°
60°
Lambertian (Gen. Illum.)
Lambertian
(Gen. Illum.)
Wall Wash
Wall Wash

Color Consistency

ELEMENT fixtures offer a range of static white CCT’s, as well as warm color dimming and programmable white options, all with 3-step color binning (or better) to maintain consistency fixture to fixture.

80+ to 95+ CRI options deliver accurate and consistent color rendering to meet all needs.

80 CRI
ACCURATE COLORS WITH MAXIUM EFFICACY
80 CRI
COLOR RENDERING FOR MORE DEMANDING APPLICATIONS
Color Scale
