Aiming & Lamping

For Easy Adjustment in Critical Situations

With a keen understanding of the challenges that face lighting designers whether it be in commercial spaces where light levels and aiming are critical, or in residential settings where comfort and ambiance are the measure of a lighting design’s success, ELEMENT engineers have set new standards for aiming and scene-setting.

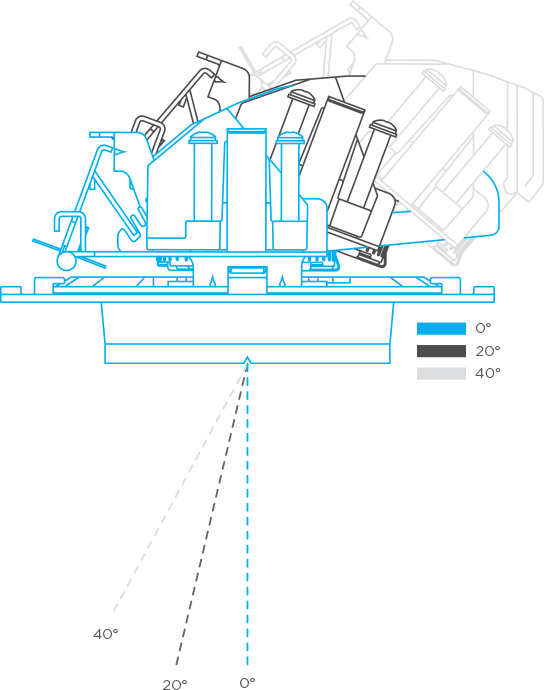

Hot-Aiming

0 degree tilt

40°

40 degree tilt
  • Center beam maintained through hot-aiming
  • 2" Series: 0°-45° tilt; 3" and 4" Series: 0°-40° tilt
  • Self-locking tilt maintains aim during re-lamping; Low-Profile
    Housing and Halogen (2" Series utilizes set-screw locking)
  • Maintains center beam light output through aperture

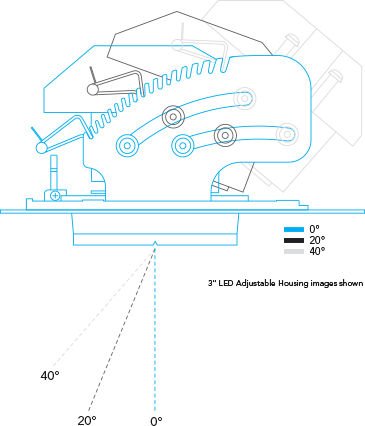

Hot Aiming Graphic

Tool-Free Locking & 361° Pan Rotation

0 degree tilt
40 degree tilt
  • Easy to use cam lever for rotation lock (2" Series utilizes set-screw locking)
  • Moving rotation stop allows for 361° rotation without dead spots

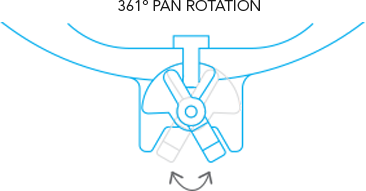

361 Degree Pan Rotation Graphic Tool-Free Locking Graphic

Patented Unique High-Low Lamp Positions

0 degree tilt
40 degree tilt
  • Innovative high-low functionality allows designers the choice of lamp placement in low position for maximum light output or high position to reduce glare and flash on trim (ELEMENT 2", 3" & 4")
  • Helps reduce cut-off at severe angles

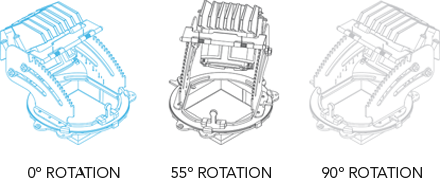

Rotation Graphics
