Build-Your-Own Multiples

Where Creativity and Necessity Meet

Utilizing the same LED light modules as the rest of ELEMENT Multiples, all performance features and options remain consistent, including our patented adjustable spot module, general illumination, and wall wash. Because light modules can be configured in tight patterns, Build-Your-Own Multiples are capable of generating very high levels of illumination for a small, focused area, while also being ideal for tall ceiling installations requiring high light capacity.

Designing With BYOM

Using ELEMENT’s Build-Your-Own Multiples (BYOM) to achieve an almost endless range of creative lighting arrays is made easy with BYOM’s expandable grid system, the foundation of BYOM. A designer’s vision from large squares or “X” shapes, even checkerboards or colorful fits of fancy using painted shapes to interact with light sources can become reality; all using any combination of adjustable spots, general illumination or wall wash light modules.

BYOM can also be a lighting designer’s true problem solver. BYOM can be designed to light corners with minimal ceiling “noise.” Or BYOM can be clustered for very intense focused lighting. Where walls are configured in odd steps or angles BYOM can follow an asymmetric line for consistent wall washing or accent lighting.

BYOM Four Light L Pattern Housing

Configurations

The ELEMENT Build-Your-Own Multiples grid frame system is highly configurable and expandable offering 21 grid frame kits of varying sizes that can be combined to create larger grids. From simple “L” shapes to “steps” or more complicated “X” arrays, BYOM LED light modules are placed into the recessed grid structure to create the desired lighting configuration and effect. To finish the look, metal paster plates and frame blanks allow the entire system to be mudded in for a completely seamless appearance.

7 Light Zig-Zag Pattern

Required for Specification:
(1)2x8 Frame Kit
(7)Frame Blanks (included with frame kit)
(7)Open Spot Housings, Black
(12)Inner Corner Plaster Plates
(16)Outer Corner Plaster Plates
Seven Light Zig-Zag Pattern Graphic

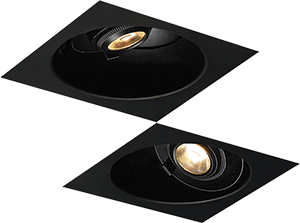

Two Light Diagonal Pattern

2 Light Diagonal Pattern

Required for Specification:
(1)2x2 Frame Kit
(2)Frame Blanks (included with frame kit)
(2)Open Spot Housings, Black
(2)Inner Corner Plaster Plates
(6)Outer Corner Plaster Plates
Two Light Diagonal Pattern Graphic

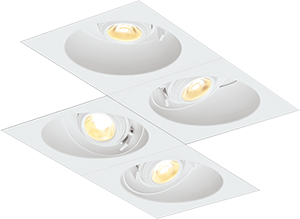

Four Light Z Pattern

4 Light Z Pattern

Required for Specification:
(1)2x3 Frame Kit
(2)Frame Blanks (included with frame kit)
(4)Open Spot Housings, White
(2)Inner Corner Plaster Plates
(6)Outer Corner Plaster Plates
Four Light Z Pattern Graphic

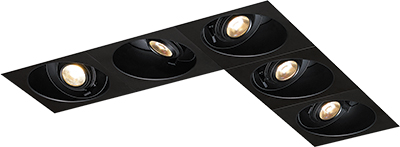

Five Light L Pattern

5 Light L Pattern

Required for Specification:
(1)3x3 Frame Kit
(4)Frame Blanks (included with frame kit)
(5)Open Spot Housings, Black
(1)Inner Corner Plaster Plates
(5)Outer Corner Plaster Plates
Five Light L Pattern Graphic

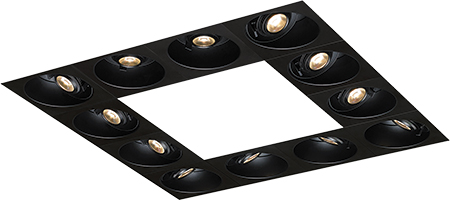

Twelve Light Square Pattern

12 Light Square Pattern

Required for Specification:
(1)4x4 Frame Kit
(4)Frame Blanks (included with frame kit)
(12)Open Spot Housings, Black
(4)Inner Corner Plaster Plates
(4)Outer Corner Plaster Plates
(4)2X Straight Plaster Plates
(4)4X Straight Plaster Plates
Twelve Light Square Pattern Graphic
Five Light X Pattern

5 Light X Pattern

Required for Specification:
(1)3x3 Frame Kit
(4)Frame Blanks (included with frame kit)
(5)Open Spot Housings, White
(8)Inner Corner Plaster Plates
(12)Outer Corner Plaster Plates
Five Light X Pattern Graphic

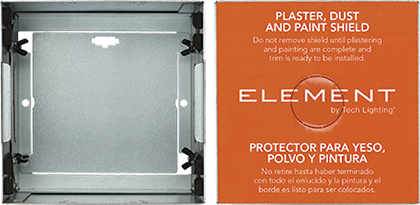

BYOM Housing and Dust Cover

BYOM Housing

Grid frame system allows light modules to be configured in never before achievable recessed lighting arrays.

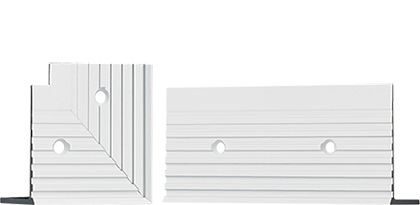

BYOM Sectional Mud Plates

Sectional Mud Plates

Extruded aluminum plaster plate pieces finish off any configuration to provide a seamless, flangeless look.

General Illumination Module

Adjustable Spot

Light Module
General Illumination Module

General Illumination

Light Module
Wall Wash Module

Wall Wash

Light Module
