Product Information

MULTIPLES TRIMMED

ELEMENT Multiples feature a unique patent-pending LED dome assembly enabling remarkable tool-free adjustment and locking while maintaining full center beam candle power at all tilt & rotation angles. All trims are made of cold rolled steel for excellent durability and are available in several finish, ceiling appearance and aperture configurations to accommodate virtually any aesthetic. Available in 1x1, 1x2, 1x3, 1x4 and 2x2 configurations.

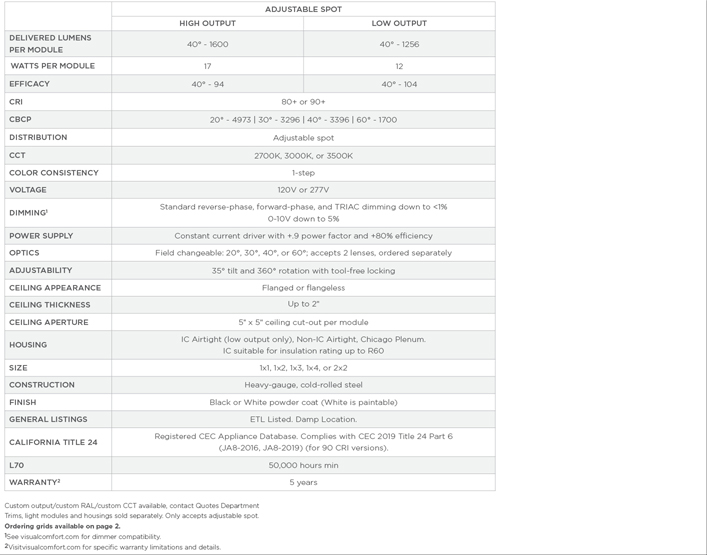

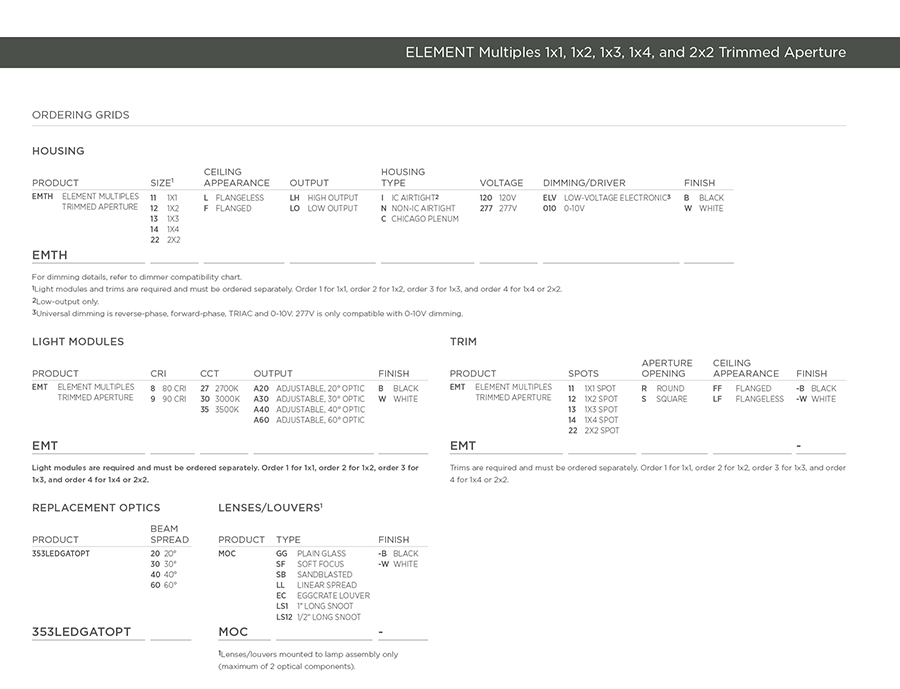

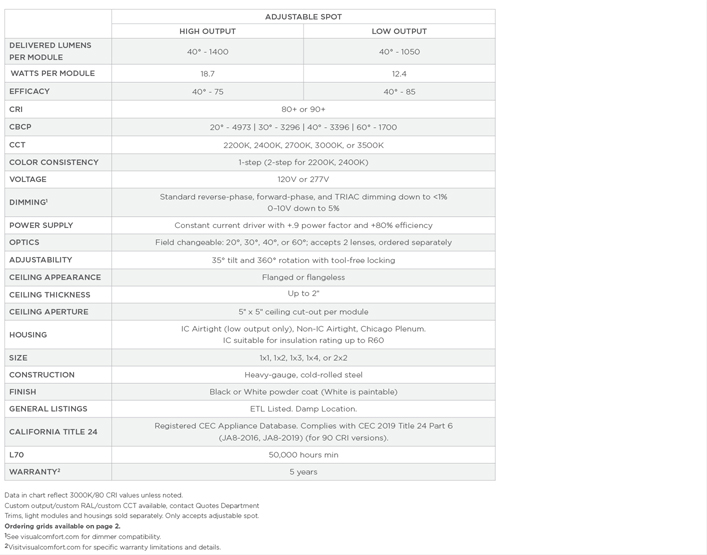

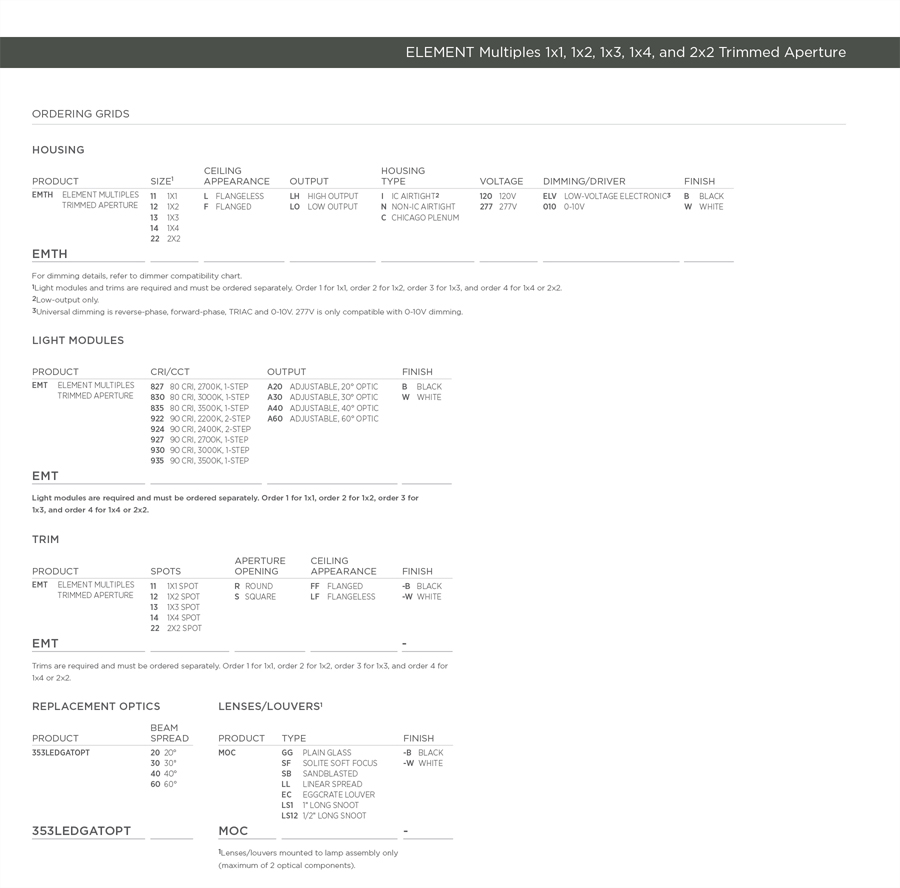

Specification Chart



Product Images
Filter: 1x1 | 1x2 | 1x3 | 1x4 | 2x2 | All

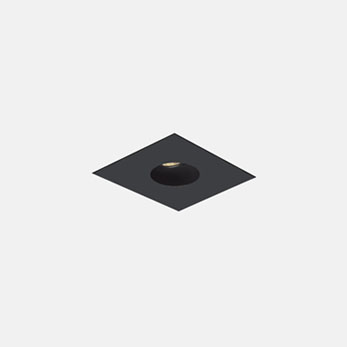

1x1 Trimmed Flanged Round Black
1x1 Trimmed Flanged Round Black

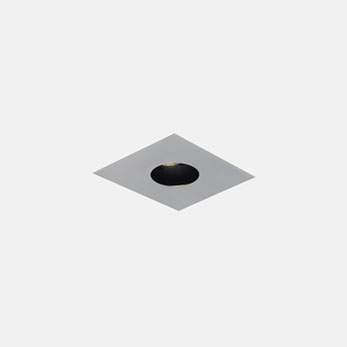

1x1 Trimmed Flanged Round Satin Nickel
1x1 Trimmed Flanged Round Satin Nickel
1x1 Trimmed Flanged Round White
1x1 Trimmed Flanged Round White

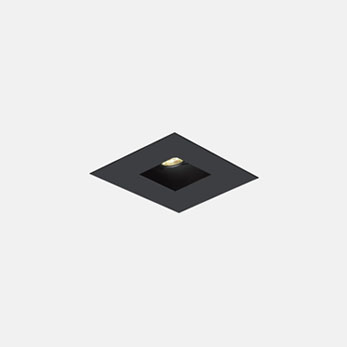

1x1 Trimmed Flanged Square Black
1x1 Trimmed Flanged Square Black
1x1 Trimmed Flanged Square Satin Nickel
1x1 Trimmed Flanged Square Satin Nickel

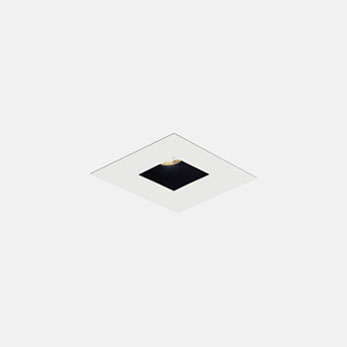

1x1 Trimmed Flanged Square White
1x1 Trimmed Flanged Square White
1x1 Trimmed Flangeless Round Black
1x1 Trimmed Flangeless Round Black

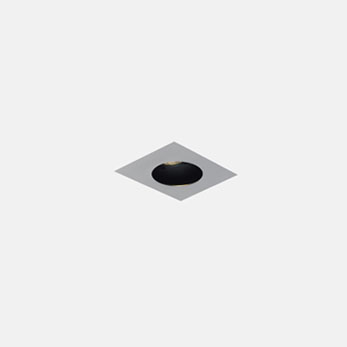

1x1 Trimmed Flangeless Round Satin Nickel
1x1 Trimmed Flangeless Round Satin Nickel

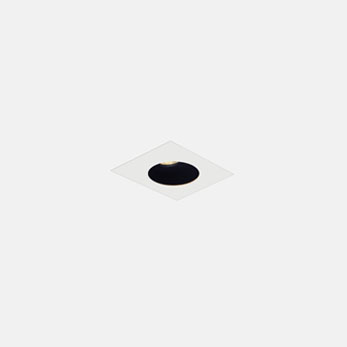

1x1 Trimmed Flangeless Round White
1x1 Trimmed Flangeless Round White

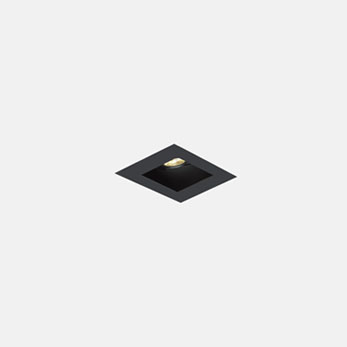

1x1 Trimmed Flangeless Square Black
1x1 Trimmed Flangeless Square Black

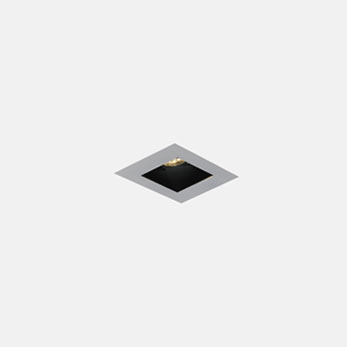

1x1 Trimmed Flangeless Square Satin Nickel
1x1 Trimmed Flangeless Square Satin Nickel

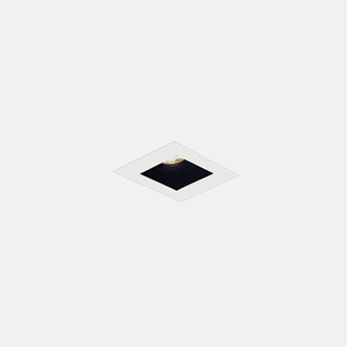

1x1 Trimmed Flangeless Square White
1x1 Trimmed Flangeless Square White

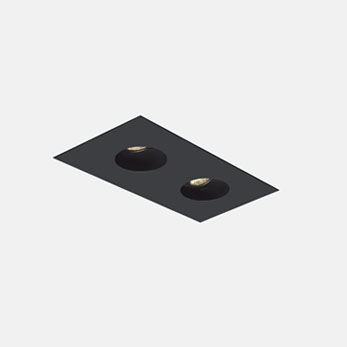

1x2 Trimmed Flanged Round Black
1x2 Trimmed Flanged Round Black

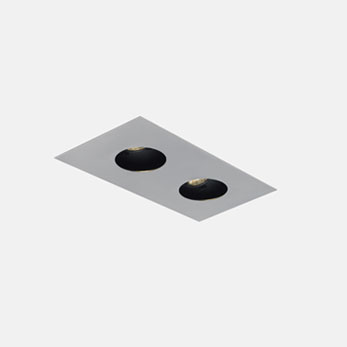

1x2 Trimmed Flanged Round Satin Nickel
1x2 Trimmed Flanged Round Satin Nickel

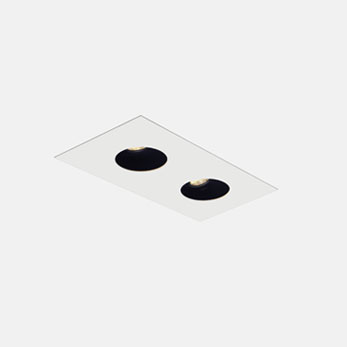

1x2 Trimmed Flanged Round White
1x2 Trimmed Flanged Round White
1x2 Trimmed Flanged Square Black
1x2 Trimmed Flanged Square Black

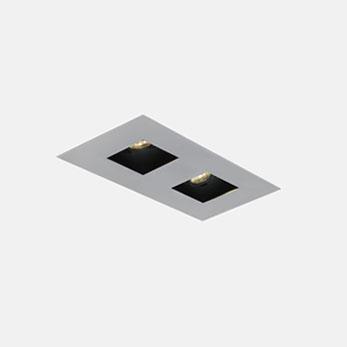

1x2 Trimmed Flanged Square Satin Nickel
1x2 Trimmed Flanged Square Satin Nickel

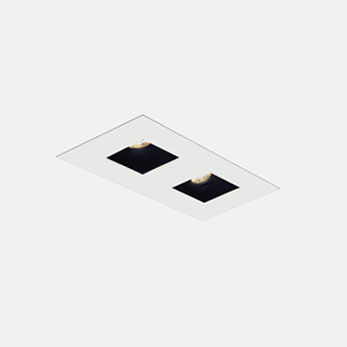

1x2 Trimmed Flanged Square White
1x2 Trimmed Flanged Square White
1x2 Trimmed Flangeless Round Black
1x2 Trimmed Flangeless Round Black

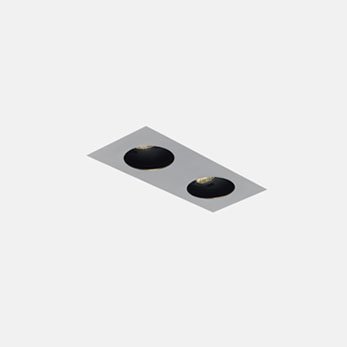

1x2 Trimmed Flangeless Round Satin Nickel
1x2 Trimmed Flangeless Round Satin Nickel
1x2 Trimmed Flangeless Round White
1x2 Trimmed Flangeless Round White

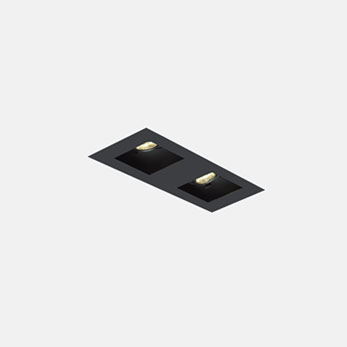

1x2 Trimmed Flangeless Square Black
1x2 Trimmed Flangeless Square Black

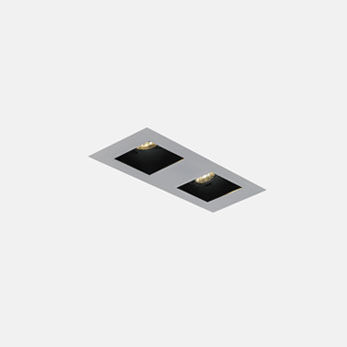

1x2 Trimmed Flangeless Square Satin Nickel
1x2 Trimmed Flangeless Square Satin Nickel

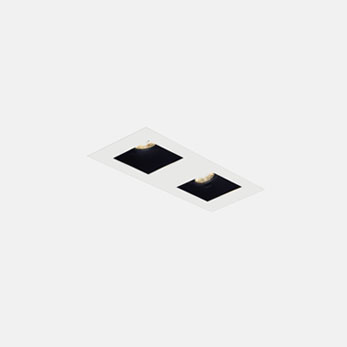

1x2 Trimmed Flangeless Square White
1x2 Trimmed Flangeless Square White
1x3 Trimmed Flanged Round Black
1x3 Trimmed Flanged Round Black
1x3 Trimmed Flanged Round Satin Nickel
1x3 Trimmed Flanged Round Satin Nickel
1x3 Trimmed Flanged Round White
1x3 Trimmed Flanged Round White
1x3 Trimmed Flanged Square Black
1x3 Trimmed Flanged Square Black
1x3 Trimmed Flanged Square Satin Nickel
1x3 Trimmed Flanged Square Satin Nickel
1x3 Trimmed Flanged Square White
1x3 Trimmed Flanged Square White
1x3 Trimmed Flangeless Round Black
1x3 Trimmed Flangeless Round Black
1x3 Trimmed Flangeless Round Satin Nickel
1x3 Trimmed Flangeless Round Satin Nickel
1x3 Trimmed Flangeless Round White
1x3 Trimmed Flangeless Round White
1x3 Trimmed Flangeless Square Black
1x3 Trimmed Flangeless Square Black
1x3 Trimmed Flangeless Square Satin Nickel
1x3 Trimmed Flangeless Square Satin Nickel
1x3 Trimmed Flangeless Square White
1x3 Trimmed Flangeless Square White
1x4 Trimmed Flanged Round Black
1x4 Trimmed Flanged Round Black

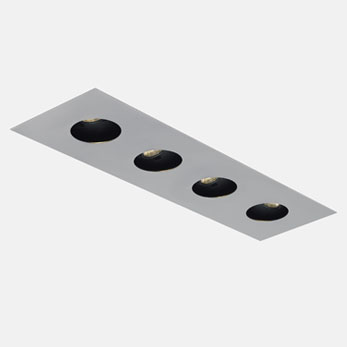

1x4 Trimmed Flanged Round Satin Nickel
1x4 Trimmed Flanged Round Satin Nickel

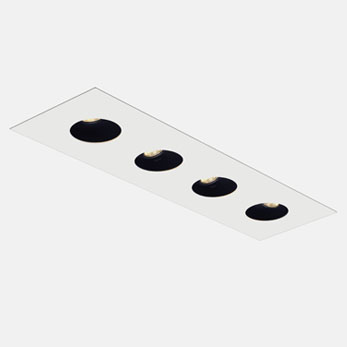

1x4 Trimmed Flanged Round White
1x4 Trimmed Flanged Round White

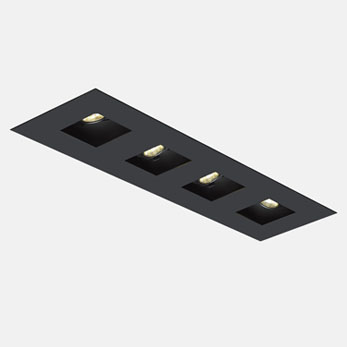

1x4 Trimmed Flanged Square Black
1x4 Trimmed Flanged Square Black
1x4 Trimmed Flanged Square Satin Nickel
1x4 Trimmed Flanged Square Satin Nickel
1x4 Trimmed Flanged Square White
1x4 Trimmed Flanged Square White

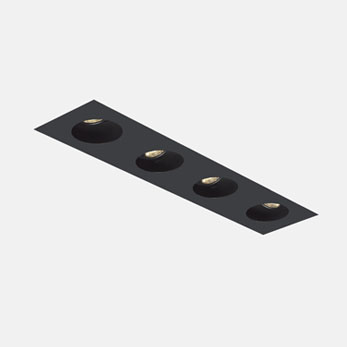

1x4 Trimmed Flangeless Round Black
1x4 Trimmed Flangeless Round Black

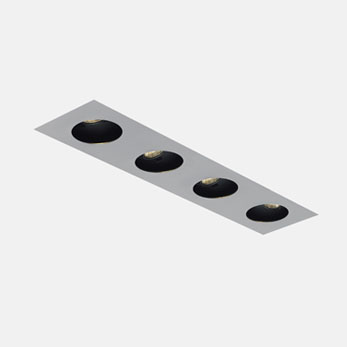

1x4 Trimmed Flangeless Round Satin Nickel
1x4 Trimmed Flangeless Round Satin Nickel

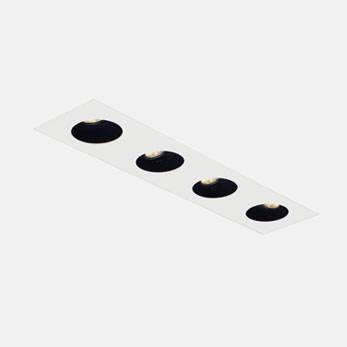

1x4 Trimmed Flangeless Round White
1x4 Trimmed Flangeless Round White

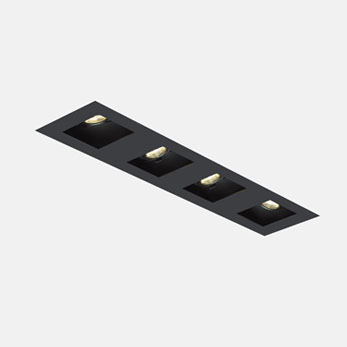

1x4 Trimmed Flangeless Square Black
1x4 Trimmed Flangeless Square Black
1x4 Trimmed Flangeless Square Satin Nickel
1x4 Trimmed Flangeless Square Satin Nickel

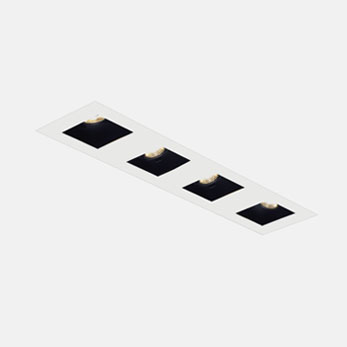

1x4 Trimmed Flangeless Square White
1x4 Trimmed Flangeless Square White

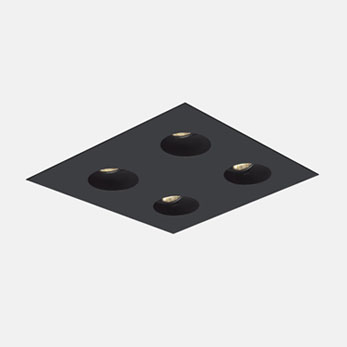

2x2 Trimmed Flanged Round Black
2x2 Trimmed Flanged Round Black

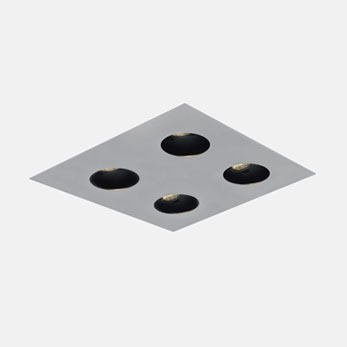

2x2 Trimmed Flanged Round Satin Nickel
2x2 Trimmed Flanged Round Satin Nickel
2x2 Trimmed Flanged Round White
2x2 Trimmed Flanged Round White

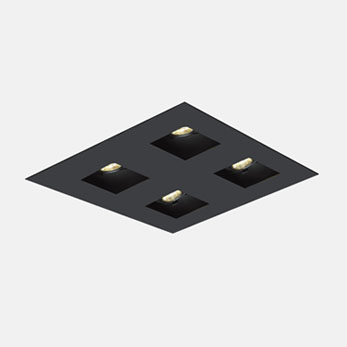

2x2 Trimmed Flanged Square Black
2x2 Trimmed Flanged Square Black

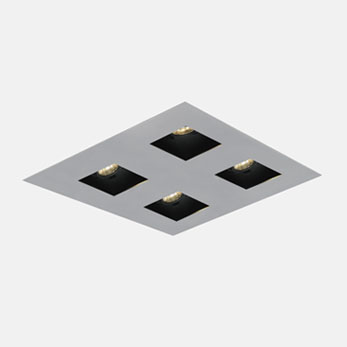

2x2 Trimmed Flanged Square Satin Nickel
2x2 Trimmed Flanged Square Satin Nickel

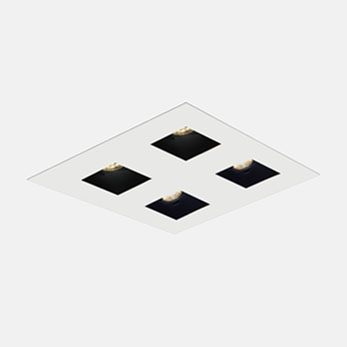

2x2 Trimmed Flanged Square White
2x2 Trimmed Flanged Square White

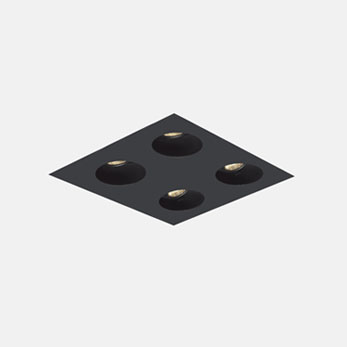

2x2 Trimmed Flangeless Round Black
2x2 Trimmed Flangeless Round Black

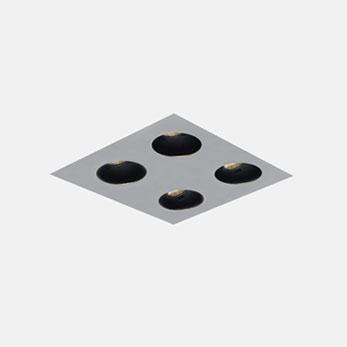

2x2 Trimmed Flangeless Round Satin Nickel
2x2 Trimmed Flangeless Round Satin Nickel

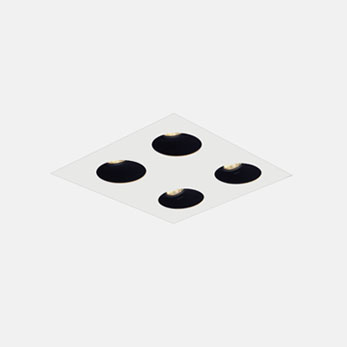

2x2 Trimmed Flangeless Round White
2x2 Trimmed Flangeless Round White

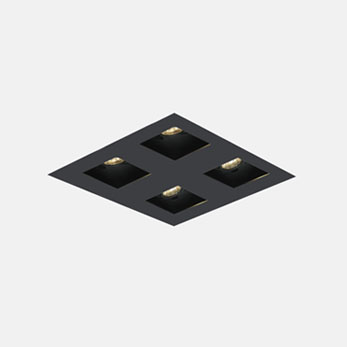

2x2 Trimmed Flangeless Square Black
2x2 Trimmed Flangeless Square Black

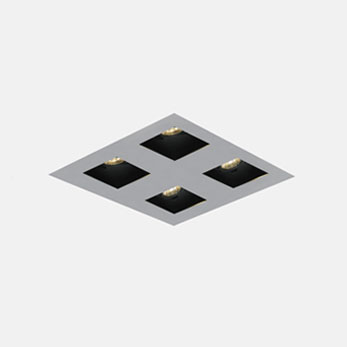

2x2 Trimmed Flangeless Square Satin Nickel
2x2 Trimmed Flangeless Square Satin Nickel

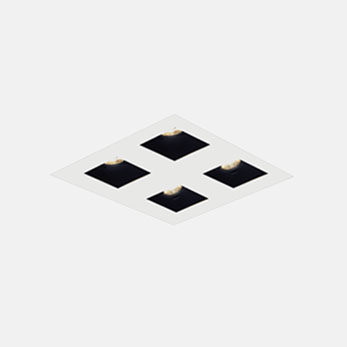

2x2 Trimmed Flangeless Square White
2x2 Trimmed Flangeless Square White
Product Features

Trims

Every ELEMENT Multiple trim is made of cold rolled steel. No seams. No warping. No sagging.









ATTRACTIVE TRIM OPTIONS

  • Like all ELEMENT downlights, our Multiples trims are made of cold rolled steel with minimal thickness for a sleek look with a choice of Flangeless (mud-in) or Flanged ceiling appearance;
  • Trims are available with either round or square apertures and choice of three finishes – black powder coat, satin nickel plated and white powder coat (paintable).

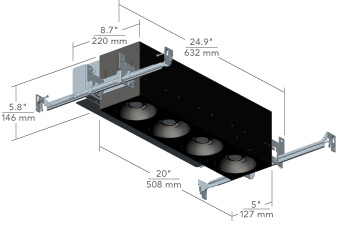

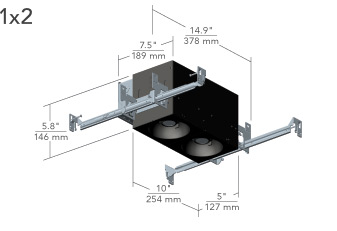

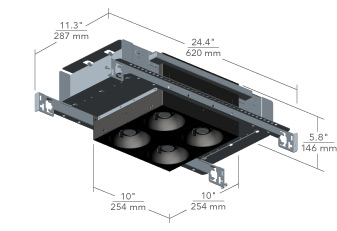

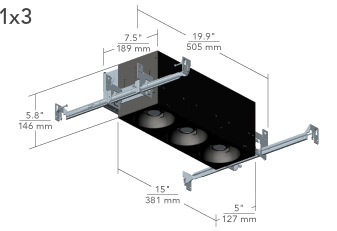

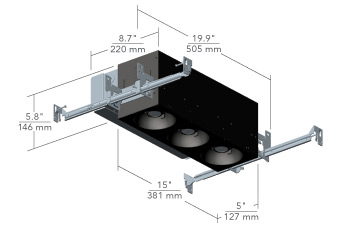

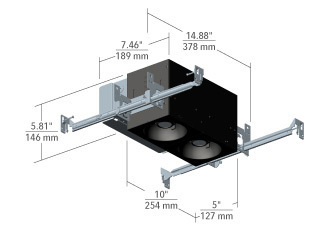

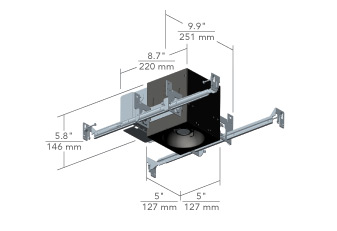

Housings

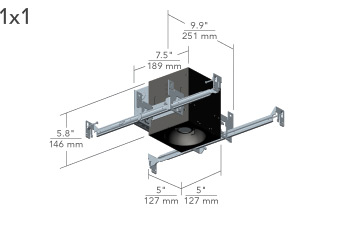

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

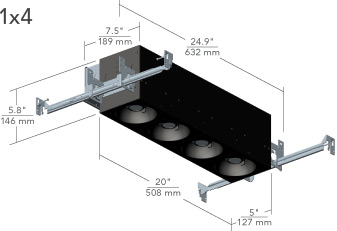

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

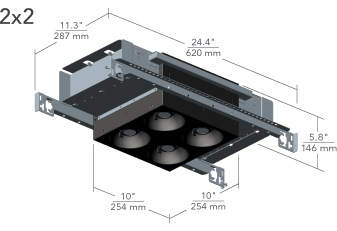

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

Awards

2015 Product Innovation Award Winner

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
