REDEFINING WHAT OPEN LOOKS LIKE





  • Thoughtful design with a focus on below-the-ceiling appearance yields a truly open fixture with a surface
    completely free of fasteners for a sleek, finished look without the use of trims

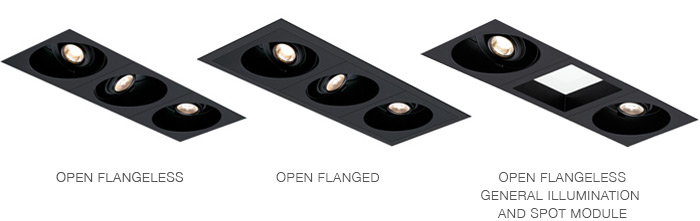

  • Open fixtures still allow a choice of either Flangeless (mud-in) or Flanged ceiling appearance

MULTIPLES OPEN

ELEMENT Multiples offers three interchangeable LED light modules: general illumination, wall wash, and adjustable spot. Light modules are sold separately to allow the ultimate in flexibility and customization options. The adjustable spot features a unique patent-pending LED dome assembly enabling remarkable tool-free adjustment and locking while maintaining full center beam candle power at all tilt & rotation angles. Although open, its thoughtful design boasts an uncommonly attractive, even sleek look below the ceiling. Available in 1x1, 1x2, 1x3, 1x4 and 2x2 configurations.

HOUSING

Constructed of heavy gauge cold rolled steel with durable black powder coat finish

Low profile design for use in standard 2x6 construction

Airtight and available in IC, Non-IC or Chicago Plenum

Includes integrated junction box approved for branch circuit through wiring

Accommodates up to 2" ceiling thickness

ETL listed. Damp listed.

Available flanged or flangeless

Light modules ordered separately

LIGHT MODULES

Spot Module
- Patented 35° tilt and 360° rotation with tool-free locking
- Field-changeable optic: 20°, 30°, 40°, 60°
- Accepts 2 lenses, ordered separately
- Available Open Flangeless and Trimmed Flangeless

General Illumination Module
- Lambertian lensing
- Available Open Flangeless

Wall Wash Module
- Asymmetric distribution
- Available Open Flangeless

Fully contained and modular design for ease of install and maintenance

5"x5" ceiling opening per spot

Light modules each ship with 5” x 5” housing and driver

Standard finishes: Black and White powder coat

Consult Quotes Department for custom finish options

Housings ordered separately

TRIMS

Cold rolled steel with minimal thickness

Ceiling appearance options: Flanged or Flangeless

Aperture options: Round or Square

Standard finish options: Black or White powder coat and Satin Nickel (plated)

White can be field painted to match adjacent finishes

Consult Quotes Department for custom finish options

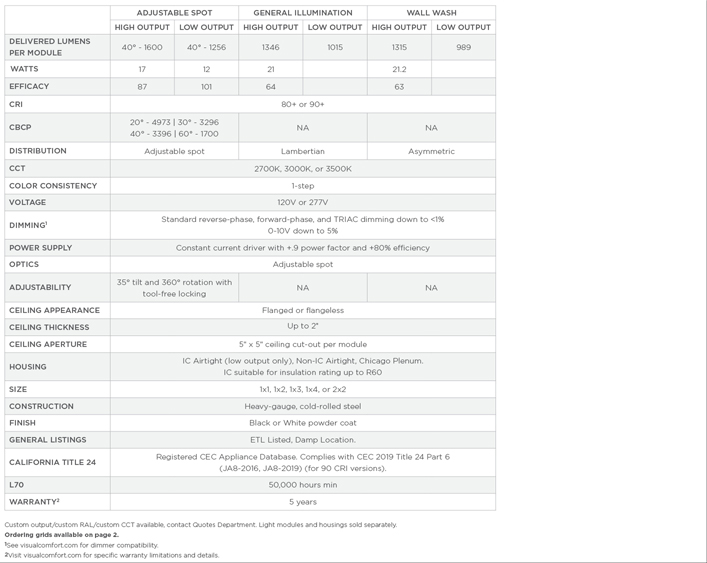

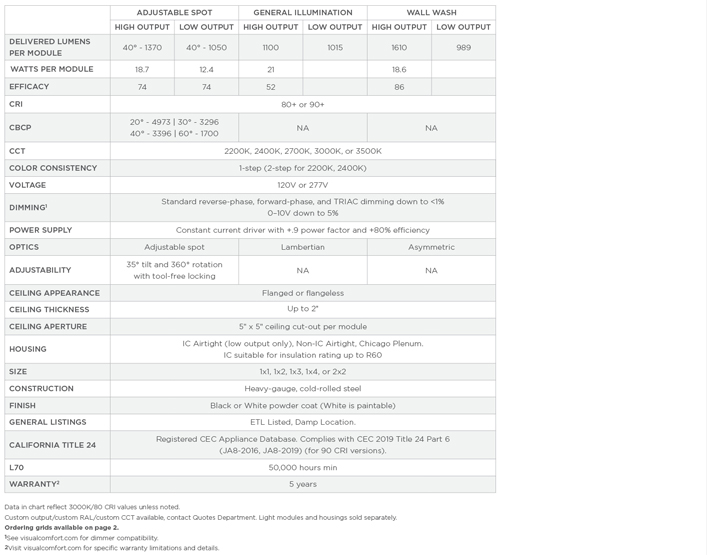

OUTPUT & CONSUMPTION

Non-IC, Chicago Plenum High Output: 1300 lumens, consuming 18 watts per light module

IC, Non-IC, Chicago Plenum Low Output: 1050 lumens, consuming 12 watts per light module

LED

CCT options: 2700K, 3000K or 3500K

CRI options: 80+ or 90+ CRI

3-step color binning or better

Consult Quotes Department for custom CCT and CRI options

DRIVER & DIMMING

Voltage options: 120v, 240v or 277v

Driver efficiency: 83.4%

Power factor: 0.98

Dimming options: ELV or 0-10v

Smooth dimming to 2%-15% depending on dimmer

Driver ships with each light module housing

See below for dimmer compatibility

INSTALLATION

Includes adjustable joist hangers and required hardware

Includes butterfly brackets on the side of the housing

for vertical adjustment with a wing nut

Includes integrated L brackets for suspended installation

Integrated gunsights for positioning with laser level



LED Module Selection Guide



Product Images
Filter: 1x1 | 1x2 | 1x3 | 1x4 | 2x2 | All
1x1 Open Flanged Black
1x1 Open Flanged Black
1x1 Open Flanged General Illumination Black
1x1 Open Flanged General Illumination Black
1x1 Open Flanged White
1x1 Open Flanged White
1x1 Open Flangeless Black
1x1 Open Flangeless Black
1x1 Open Flangeless Wall Wash White
1x1 Open Flangeless Wall Wash White
1x1 Open Flangeless White
1x1 Open Flangeless White
1x2 Open Flanged Black
1x2 Open Flanged Black
1x2 Open Flanged General Illumination Black
1x2 Open Flanged General Illumination Black
1x2 Open Flanged White
1x2 Open Flanged White

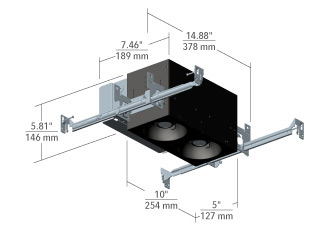

1x2 Open Flangeless Black
1x2 Open Flangeless Black
1x2 Open Flangeless Wall Wash White
1x2 Open Flangeless Wall Wash White
1x2 Open Flangeless White
1x2 Open Flangeless White
1x3 Open Flanged Black
1x3 Open Flanged Black
1x3 Open Flanged General Illumination Spot Module Black
1x3 Open Flanged General Illumination Spot Module Black
1x3 Open Flanged Wall Wash Spot Module Black
1x3 Open Flanged Wall Wash Spot Module Black
1x3 Open Flanged White
1x3 Open Flanged White

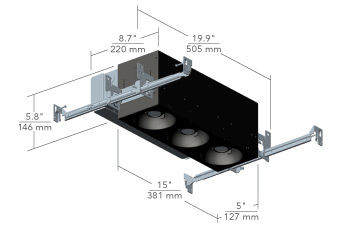

1x3 Open Flangeless Black
1x3 Open Flangeless Black
1x3 Open Flangeless General Illumination White
1x3 Open Flangeless General Illumination White
1x3 Open Flangeless Wall Wash White
1x3 Open Flangeless Wall Wash White
1x3 Open Flangeless White
1x3 Open Flangeless White
1x4 Open Flanged Black
1x4 Open Flanged Black
1x4 Open Flanged General Illumination Spot Module Black
1x4 Open Flanged General Illumination Spot Module Black
1x4 Open Flanged Wall Wash General Illumination Black
1x4 Open Flanged Wall Wash General Illumination Black
1x4 Open Flanged White
1x4 Open Flanged White

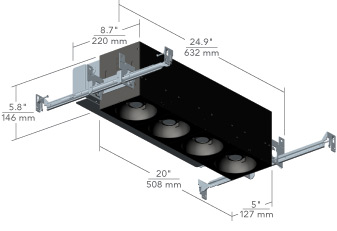

1x4 Open Flangeless Black
1x4 Open Flangeless Black
1x4 Open Flangeless Wall Wash Spot Module White
1x4 Open Flangeless Wall Wash Spot Module White
1x4 Open Flangeless White
1x4 Open Flangeless White
2x2 Open Flanged Black
2x2 Open Flanged Black
2x2 Open Flanged General Illumination Black
2x2 Open Flanged General Illumination Black
2x2 Open Flanged Wall Wash Spot Module Black
2x2 Open Flanged Wall Wash Spot Module Black
2x2 Open Flanged White
2x2 Open Flanged White
2x2 Open Flangeless Black
2x2 Open Flangeless Black
2x2 Open Flangeless Wall Wash White
2x2 Open Flangeless Wall Wash White
2x2 Open Flangeless White
2x2 Open Flangeless White
2x2 Wall Wash General Illumination Spot Module White
2x2 Wall Wash General Illumination Spot Module White
Product Features

GENERAL ILLUMNIATION

WALL WASH

SPOT MODULE

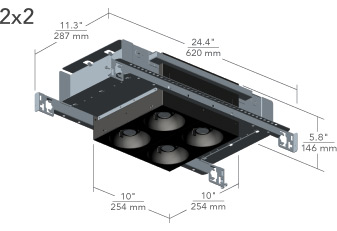

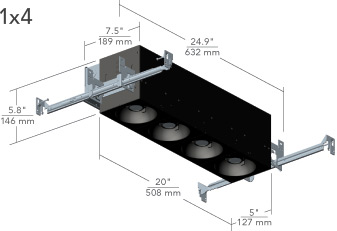

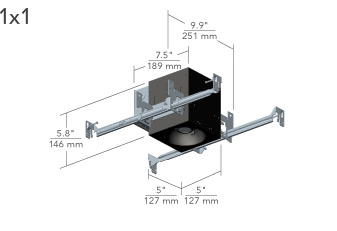

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

CHICAGO PLENUM

IC/NON-IC AIRTIGHT

CHICAGO PLENUM

IC/NON-IC AIRTIGHT
