MERGE™ 1.5 Suspended Linear System
Whether being used to highlight architectural elements, enhance a room's size, or deliver well-controlled general illumination, patent-pending
ELEMENT Merge™ 1.5 puts the focus on the room and offers stunning design flexibility. Uniform,
glare-free LED light can be designed to make 90° turns in the same plane for enhanced architectural interest. To further the utility of this beautifully integrated linear
lighting system, spot heads or pendants can be added directly into the channel at any point along its concealed low-voltage bus system for simultaneous accent or task
illumination.
DESIGN FEATURES AND OPTIONS:
Downlight, uplight, and low-voltage track in one linear fixture

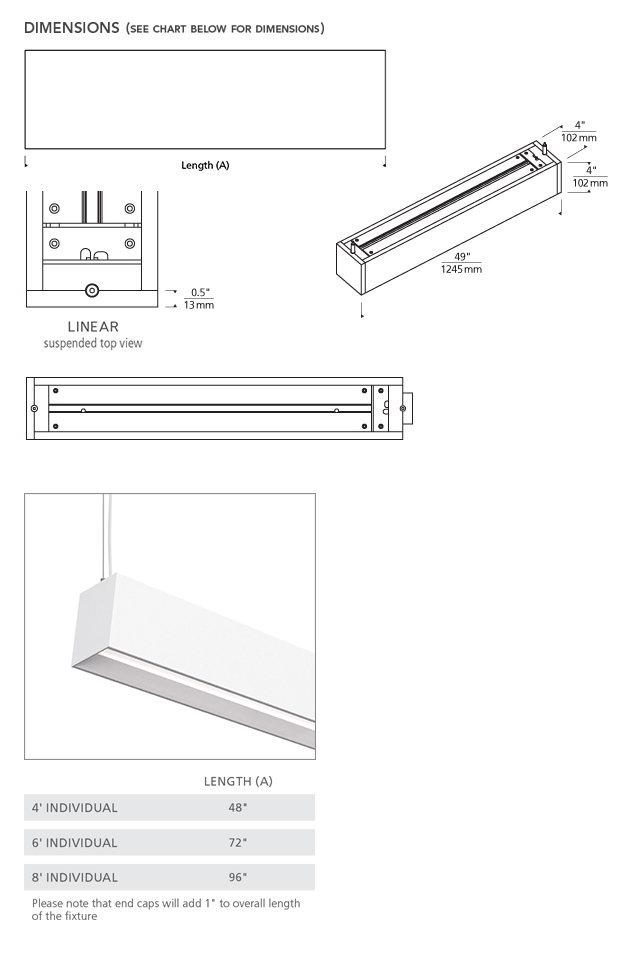

4 ft, 6 ft, and 8 ft gangable linear lengths with "L" connectors
Linear channel: Static white with multiple CRI and color temperature options
Internal reflector finished with high reflectance matte white paint for even light distribution & optimal efficiency

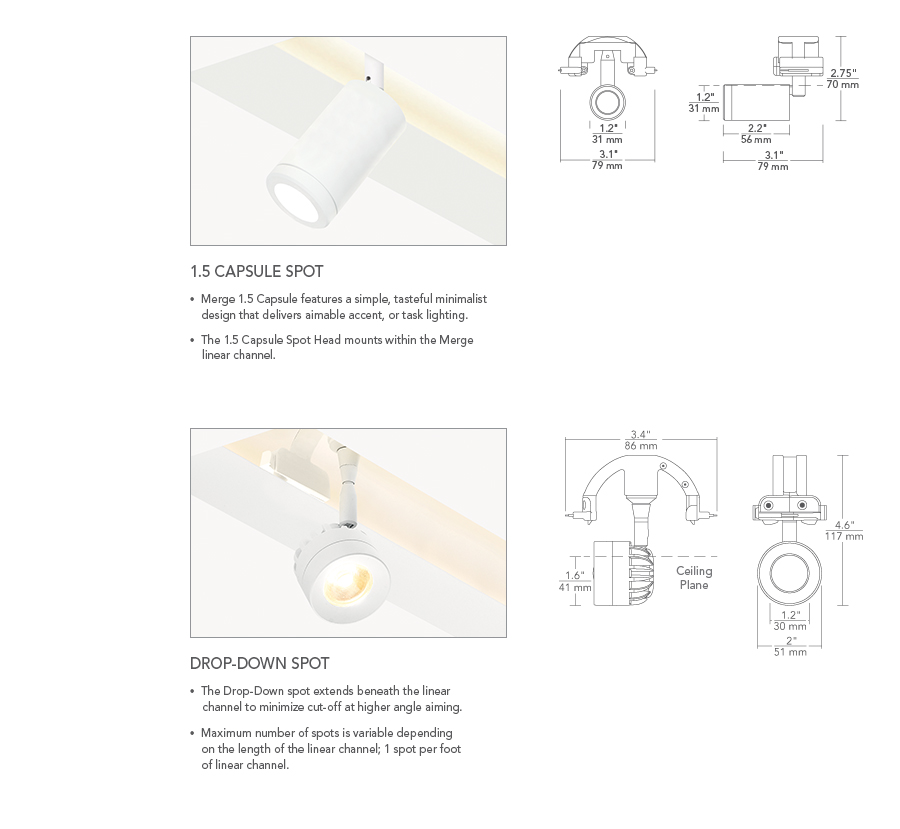

Two spot head options: MERGE™ 1.5 Capsule (coming soon), and MERGE™ 1.5 Drop-Down
Twist-and-lock design allows LED adjustable spot heads to be placed anywhere along the bus channel
FreeJack connector allows the use of any Tech Lighting low-voltage head or pendant
Multiple CRI, color temperature, and beam spread options

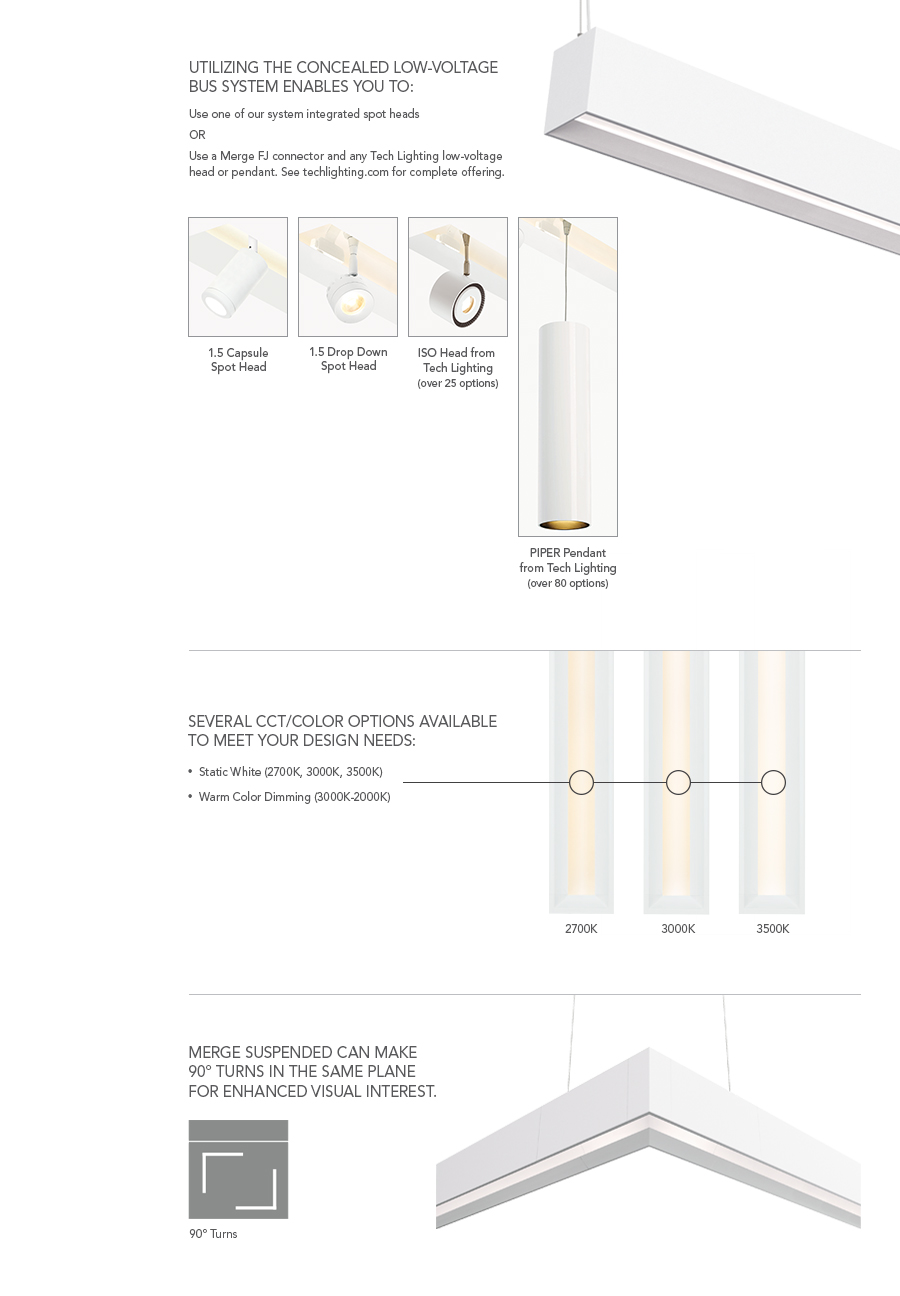

The ELEMENT Merge™ 1.5 Suspended LED linear system represents the marriage of indirect downlight, independent up light, and a track system;
all in one system with independent control and outputs for optimal illumination and power conservation. With varying length components,
Merge 1.5 Suspended can be configured up to a continuous 80' run from a single feed. A 90° connector is also available for illuminated same-plane turns.
The Merge™ 1.5 Capsule (coming soon), and the Merge™ 1.5 Drop-Down Spots, or many Tech Lighting low-voltage heads or pendants (using the FreeJack connector) can be placed anywhere
along the concealed low-voltage bus system for added versatility.

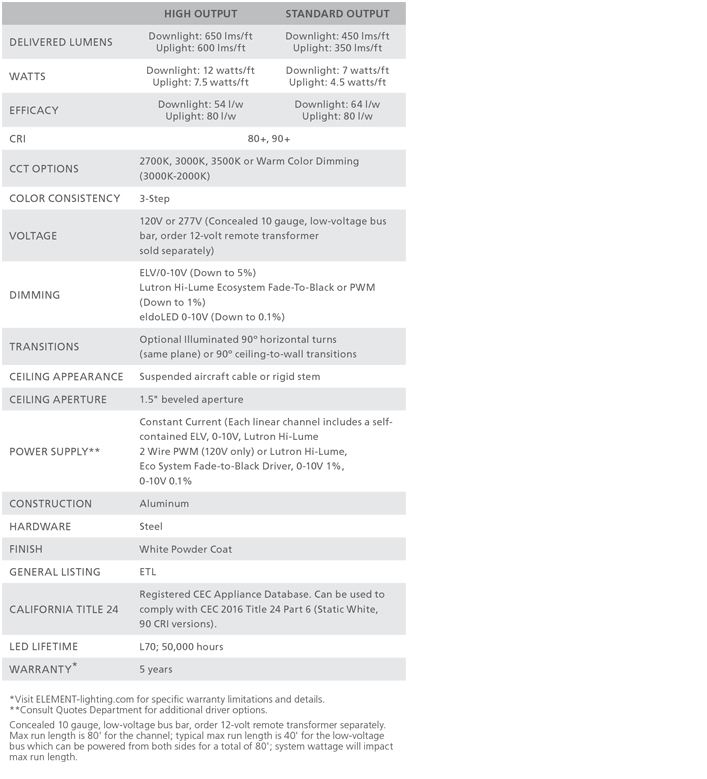

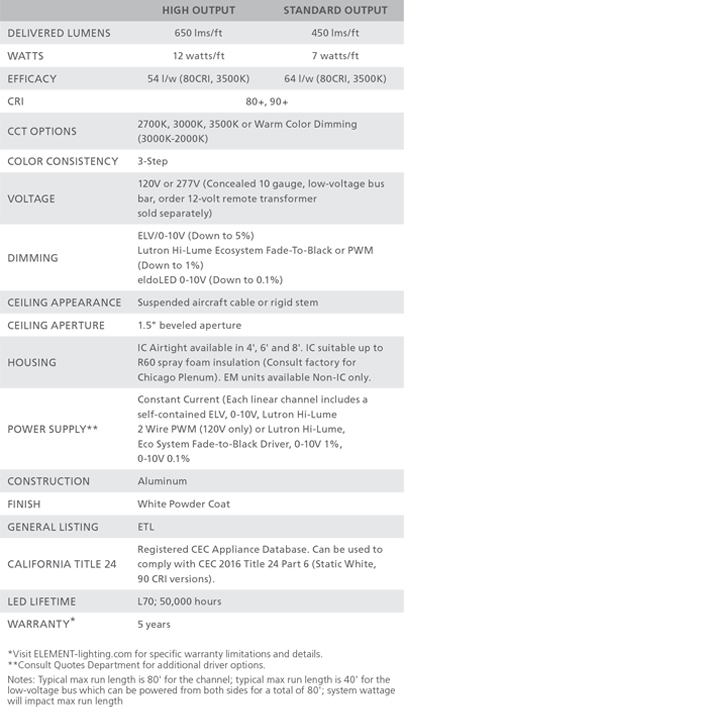

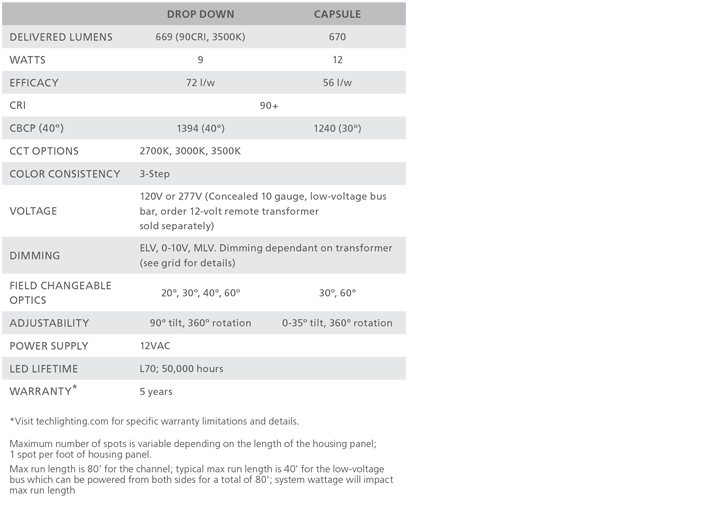

Specification Chart
The ELEMENT Merge™ 1.5 low-voltage bus system allows you to simply
twist-and-lock LED adjustable spot heads anywhere along the channel for stunning design flexibility. Options for beam spread, mounting, and color
temperature allow designers to specify a system tailored to exacting demands. The Merge™ Capsule (coming soon), and the Merge™ Drop-Down Spot allows maximum aimability utilizing
the Merge FJ connector. For further design options, the FJ connector
allows any Tech Lighting low-voltage head or pendant to be mounted from the Merge system making it remarkably versatile.
SPECIFICATIONS
Creating a continuous uninterrupted line of beautiful, glare-free LED light, the ELEMENT Merge™ 1.5 Suspended LED linear system inconspicuously puts light where it is needed.

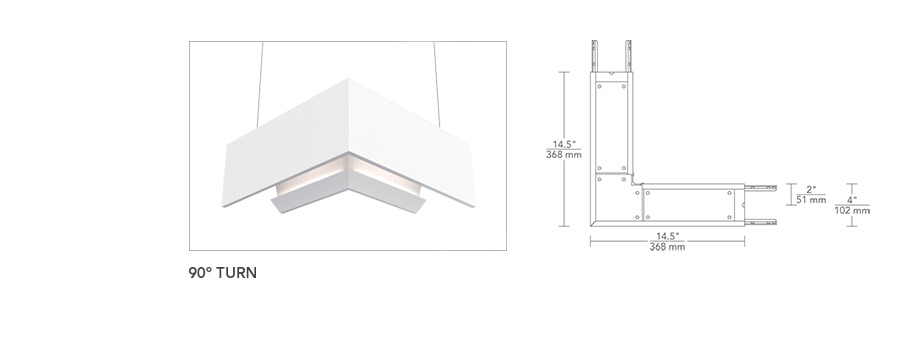

The continuous line aesthetic created by the ELEMENT Merge™ 1.5 system is enhanced using a specifically engineered 90° turn connector.
Lines of LED light can be designed to seamlessly make 90° same-plane turns for enhanced design interest while also allowing the option to add spot heads for accent and task
lighting, all without adding more light fixtures to the space.
SPECIFICATIONS
Applications
