MERGE™ 1.5 Recessed Track System
ELEMENT Merge™ 1.5 recessed track channels are available in 4, 6 and 8 foot lengths with a number of connector options for flanged, flangeless, or lay–in
installation. ELEMENT Merge spot heads or pendants can be added directly into the channel at any point along its concealed low–voltage bus system for simultaneous
accent or task illumination. Flanged versions and flangeless versions (which include aluminum plaster plates for a mudded in look) and all linear components feature a
beveled aperture to integrate seamlessly with architecture for sleek ceiling to fixture transitions.

DESIGN FEATURES AND OPTIONS:
Beveled aperture integrates seamlessly with architecture for sleek ceiling to fixture transition
Available flanged, flangeless with drywall, or lay-in (T-Grid) installation
4 ft, 6 ft and 8 ft gangable linear lengths with "L" and wall-to-ceiling connectors
Optimized for use in 2"x 4" construction

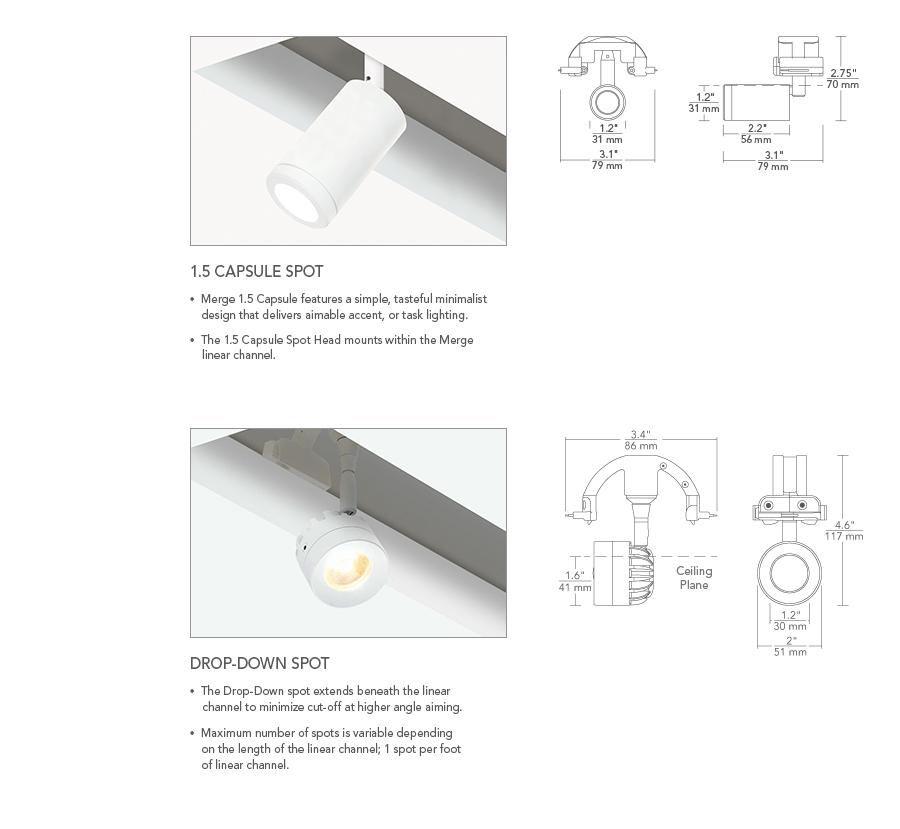

Two spot head options: MERGE™ 1.5 Capsule, and MERGE™ 1.5 Drop-Down
Twist-and-lock design allows LED adjustable spot heads to be placed anywhere along the bus channel
FreeJack connector allows the use of any Tech Lighting low-voltage head or pendant
Spots: Multiple CRI, color temperature, and beam spread options



ELEMENT Merge™ 1.5 linear recessed track channels are available in 4', 6' and 8' lengths with a number of connector options for flanged, flangeless, or lay-in
installation. Lines of LED light can be designed to make 90° turns or transitions from ceiling to wall for enhanced design interest while adding spot heads for accent and task
lighting without adding more light fixtures to the space. Flanged and flangeless versions include aluminum plaster plates for a mudded in look and all linear components feature
a beveled aperture to integrate seamlessly with architecture for sleek ceiling to fixture transitions. Custom linear lengths available between 4' to 6', (Consult Quotes Dept.)

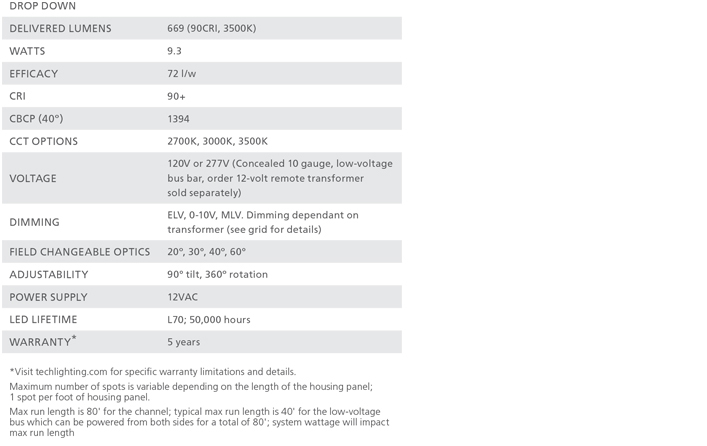

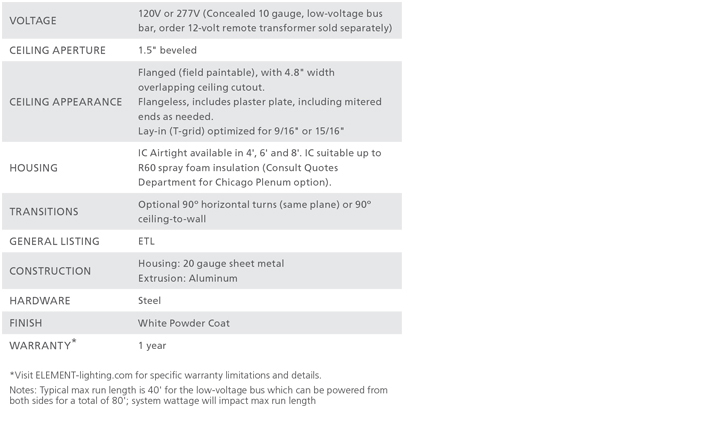

SPECIFICATIONS



The ELEMENT Merge™ 1.5 low-voltage bus system allows you to simply
twist-and-lock LED adjustable spot heads anywhere along the channel for stunning design flexibility. Options for beam spread, mounting, and color

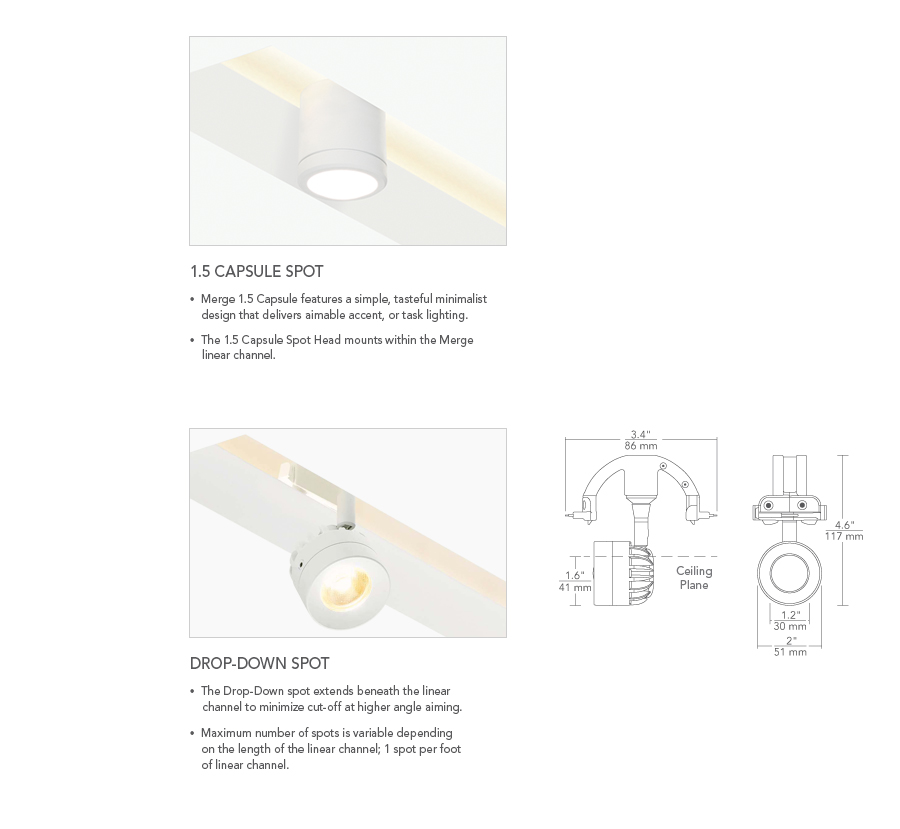

temperature allow designers to specify a system tailored to exacting demands. The Merge™ 1.5 Capsule and the Merge™ 1.5 Drop-Down Spot allows maximum aimability and
utilizes Merge FJ connector. For further design options, the FJ connector allows any Tech Lighting low-voltage head or pendant to be mounted from the Merge system making it
remarkably versatile.

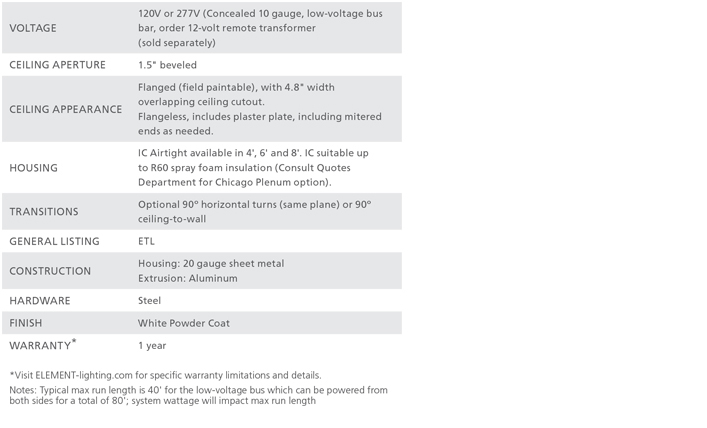

SPECIFICATIONS



The continuous line of the ELEMENT Merge™ 1.5 Recessed Track system is enhanced using either a specifically
engineered 90° turn connector or wall-to-ceiling connector. Seamlessly make 90° turns or transition from ceiling to wall for enhanced design interest while also allowing the
option to add spot heads for accent and task lighting.
