ENTRA CL 3" LED REMODEL DOWNLIGHT

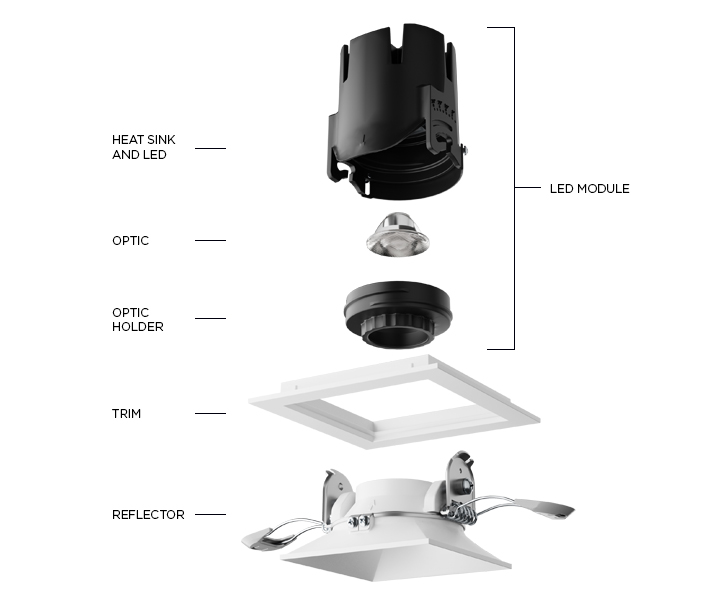

The ENTRA CL3 LED Remodel Adjustable, Fixed and Wall Wash 3" downlights offer a cost-effective alternative for updating residential, multi-family and hospitality applications without sacrificing architectural-grade aesthetic or quality. Custom engineered for high performance and reliability, ENTRA CL3 Remodel is easy to configure with a complete feature set that offers flexibility without an overwhelming list of options. Modules are available with three Static White CCT options, 3000K - 1800K warm color dimming, and four interchangeable optics (20°, 30°, 40° and 60°). Trim options include Flanged or Flangeless (includes mud plate) and Round or Square in Satin Silver, Champagne, Black or White finish. (White finish is field-paintable.)

  • 2700K, 3000K, 3500K, Warm Dim 3000K-1800K
  • Multiple Output Options
  • 20°, 30°, 40° (included) and 60° interchangeable optics
  • Flanged or Flangeless Ceiling Appearance

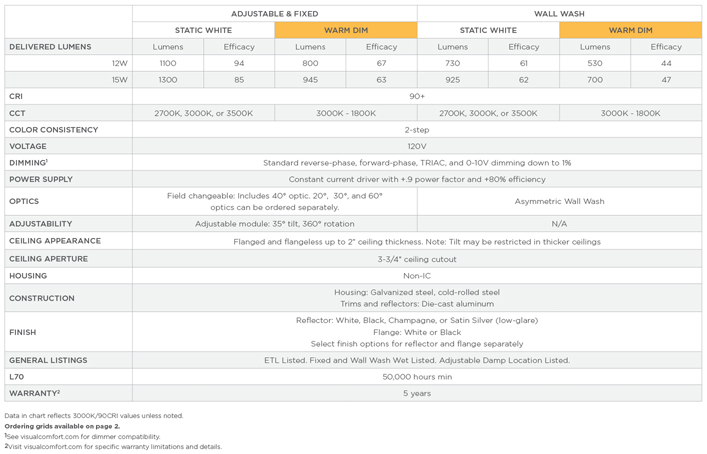

  • Specification Chart



    Trims

    Every ENTRA trim is die cast aluminum. No seams. No warping. No sagging.


    SQUARE TRIMS

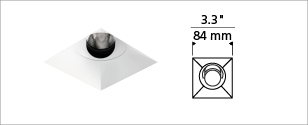

    FLANGELESS ADJUSTABLE

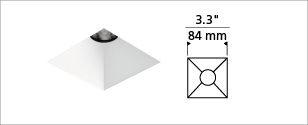

    FLANGELESS DOWNLIGHT

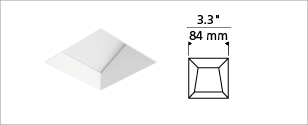

    FLANGELESS WALL WASH

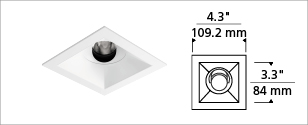

    FLANGED ADJUSTABLE

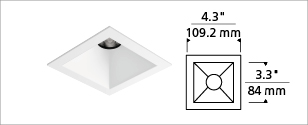

    FLANGED DOWNLIGHT

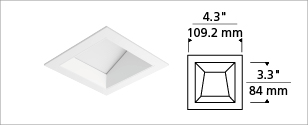

    FLANGED WALL WASH

    ROUND TRIMS

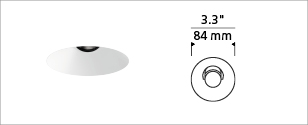

    FLANGELESS ADJUSTABLE

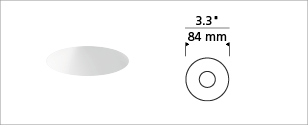

    FLANGELESS DOWNLIGHT


    FLANGELESS WALL WASH

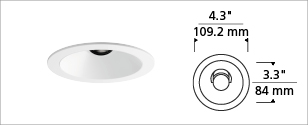

    FLANGED ADJUSTABLE

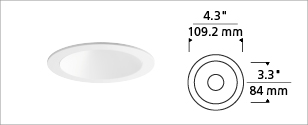

    FLANGED DOWNLIGHT

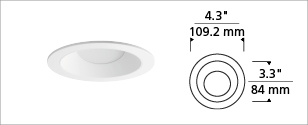

    FLANGED WALL WASH


    Finishes

    White Trim Black Trim

    White Trim, Black Reflector

    Black Trim, Black Reflector

    White Trim, White Reflector

    Black Trim, White Reflector

    White Trim, Champagne Reflector

    Black Trim, Champagne Reflector

    White Trim, Silver Reflector

    Black Trim, Silver Reflector

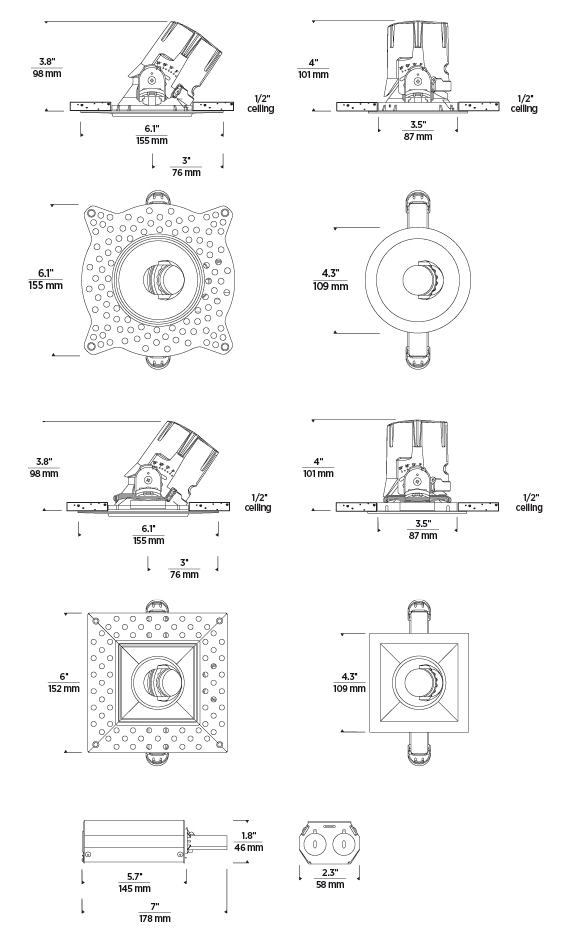

    Housings


    NON-IC

    Installation

    Flangeless Installation

    Installing ENTRA is easy. Flanged Trims are designed for a minimal aesthetic and Flangeless Trims are installed after the ceiling with a no-fill collar and crack-resistant plaster plate (included with product). Integral gunsights for positioning with laser levels ensure consistent alignment during installation.





    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Mount wall board to ceiling and walls.




    Attach plaster plate to the aperture using supplied hardware.


    Skim coat around the plaster plate and up to the aperture for a seamless appearance.
