ENTRA CL 3" LED FIXED DOWNLIGHT

The ENTRA CL3 LED Fixed downlight offers a cost-effective alternative for multi-family, hospitality and tenant improvement applications without sacrificing architectural grade aesthetic or quality. Custom engineered for high performance and reliability, ENTRA CL3 is easy to configure with a complete feature set that offers flexibility without an overwhelming list of options. Modules are available with three Static White CCT options, 3000K-1800K warm color dimming, and four interchangeable optics (20°, 30°, 40° and 60°). Trim options include Flanged or Flangeless (includes mud plate) and Round or Square in Satin Silver, Champagne, Black and White finish (White finish is field-paintable).

  • 2700, 3000K, 3500K, Warm Dim 3000K-1800K
  • Multiple Output Options
  • 20°, 30°, 40° (included) and 60° interchangeable optics
  • Flanged or Flangeless Ceiling Appearance

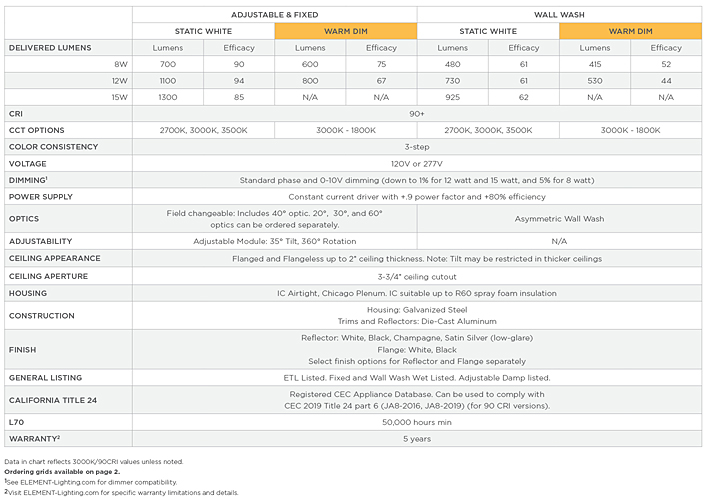

  • Specification Chart



    Trims

    Every ENTRA trim is die cast aluminum. No seams. No warping. No sagging.


    SQUARE TRIMS


    FLANGELESS DOWNLIGHT


    FLANGED DOWNLIGHT

    ROUND TRIMS


    FLANGELESS DOWNLIGHT


    FLANGED DOWNLIGHT

    Finishes

    White Trim

    Black Trim


    White Trim, Black Reflector


    Black Trim, Black Reflector


    White Trim, White Reflector


    Black Trim, White Reflector


    White Trim,
    Champagne Reflector


    Black Trim,
    Champagne Reflector


    White Trim, Silver Reflector

    Black Trim, Silver Reflector

    Housings


    IC AIRTIGHT / CHICAGO PLENUM

    Installation

    Flangeless Installation

    Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Mount wall board to ceiling and walls.




    Attach plaster plate to the aperture using supplied hardware.


    Skim coat around the plaster plate and up to the aperture for a seamless appearance.
