ENTRA 3" LED REMODEL ADJUSTABLE DOWNLIGHT

The ELEMENT Entra 3" Remodel Adjustable LED Downlight offers a quality alternative to meet residential and commercial specifications on budget-sensitive projects. Custom engineered for high performance and reliability, ELEMENT Entra is easy to configure with a complete feature set that offers flexibility without an overwhelming list of options.

The ELEMENT Entra recessed downlight family is built on two core principles:
  • Offer a cost-effective solution, without compromise
    • Hot-aiming: 0-30° tilt, 359° rotation
    • Die-Cast, aluminum trims (white finish is field-paintable)
    • 90+ CRI, Energy Star and T24 Compliant
    • Available in four color temperatures: 2700K, 3000K, 3500K, or 4000K
    • Durable powder coat matte black inner housing finish for a quiet ceiling
    • Accepts two optical controls and an optional trim-mounted lens
  • Simplify the specification process by reducing ordering complexity while providing maximum flexibility
    • Adjustable model is priced as a fixed downlight eliminating the need for two separate housings and two different prices.
    • New construction is offered in a single, compact Airtight IC-rated housing (L: 12.3” x W: 8.8” x H: 5.4”)
    • All housings ship with an optional plaster plate for flangeless applications
    • All (new construction) housings ship with a universal 120-277V input driver compatible with and Triac, ELV and 0-10V Dimming
    • All housings ship with 20°, 40° and 65° optics

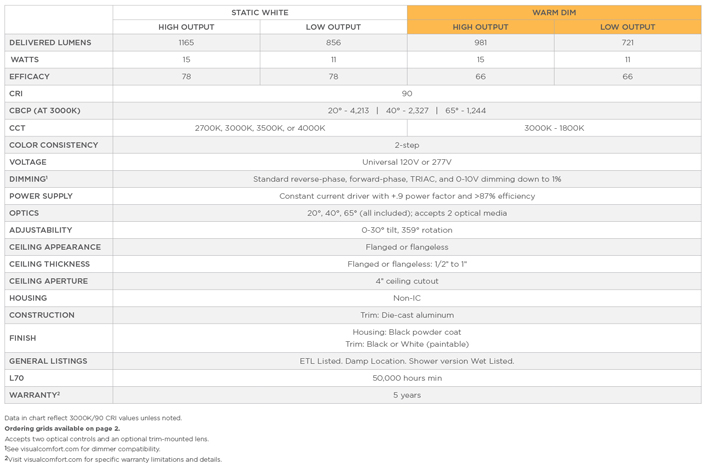

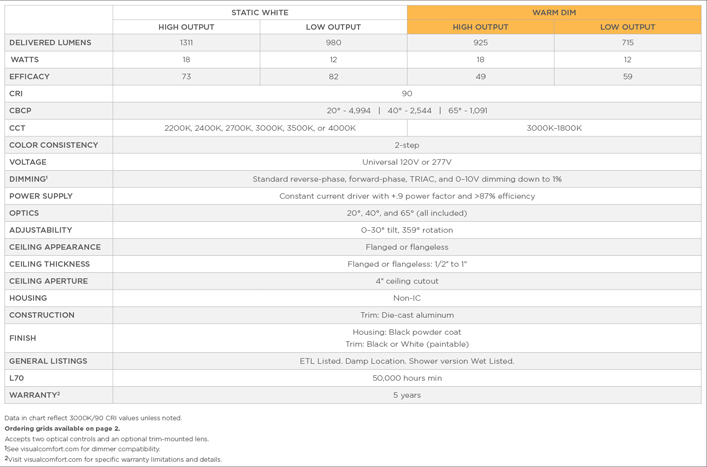

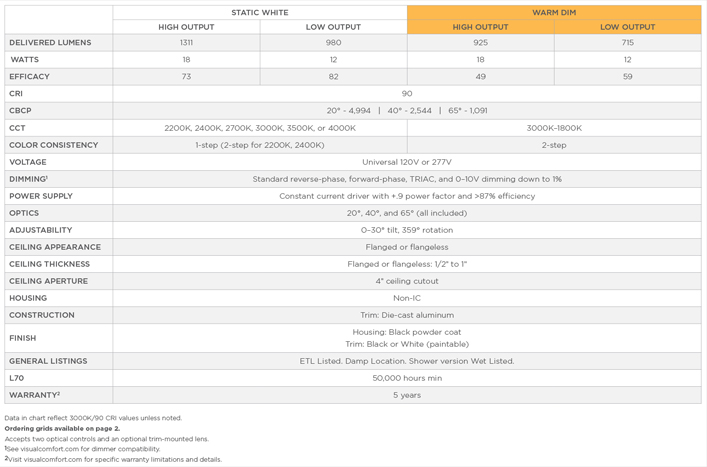

Specification Chart

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

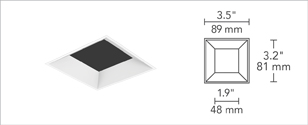

FLANGELESS BEVEL


FLANGELESS FLAT

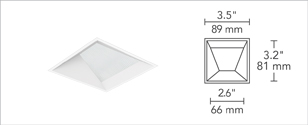

FLANGELESS WALL WASH

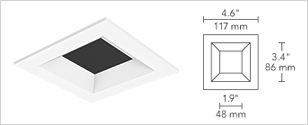

FLANGED BEVEL

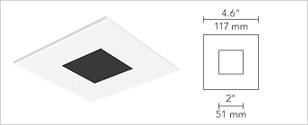

FLANGED FLAT

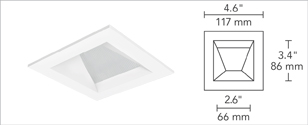

FLANGED WALL WASH

ROUND TRIMS

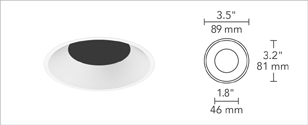

FLANGELESS BEVEL

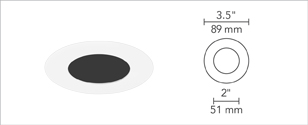

FLANGELESS FLAT

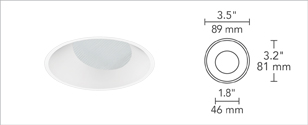

FLANGELESS WALL WASH

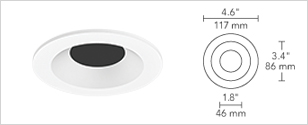

FLANGED BEVEL

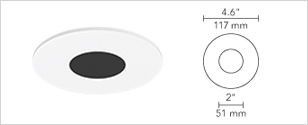

FLANGED FLAT

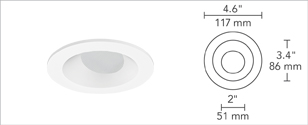

FLANGED WALL WASH

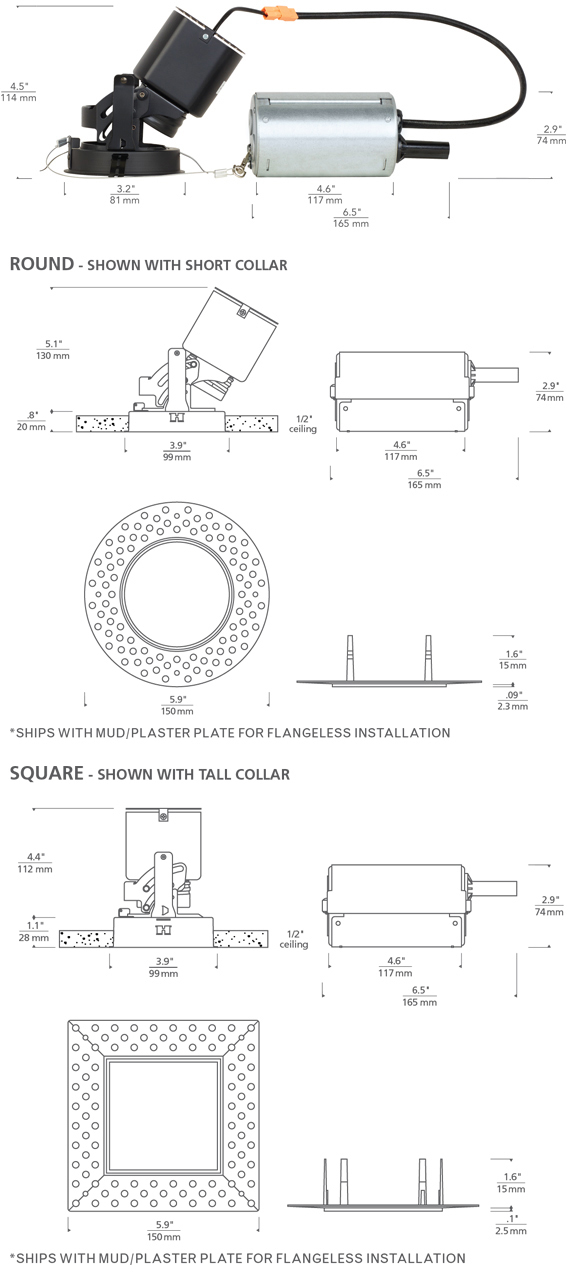

NON-IC
ENTRA
DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
OUTPUT RANGE
COMMENTS
Triac
(Forbes & Lomax)
FLR603P Consult Dimmer Co. 100-6%
ELV
(Insteon)
2477D Consult Dimmer Co. 100-14%
U
(Legrand)
ADTH700RMTUW1 Consult Dimmer Co. 100-8%
CFL/LED
(Legrand)
HCL45-3PW Consult Dimmer Co. 100-12%
U
(Legrand)
HCL45-3PW Consult Dimmer Co. 100%-16%
Triac
(Lutron)
AY-600P-WH Consult Dimmer Co. 100-12%
Triac
(Lutron)
D-600P-WH Consult Dimmer Co. 100-.1%
C*L
(Lutron)
DSL06-1LZ Consult Dimmer Co. 100-8%
Triac
(Lutron)
DV-600P Consult Dimmer Co. 100-7%
C*L
(Lutron)
DVCL-153P Consult Dimmer Co. 100-1%
ELV
(Lutron)
DVELV-300P Consult Dimmer 100-7%
ELV
(Lutron)
DVRP-253P Consult Dimmer Co. 100-7%
Triac
(Lutron)
GL-600P-WH Consult Dimmer Co. 100-7%
ELV
(Lutron)
HQRD-6NA Consult Dimmer Co. 100-2%
Triac
(Lutron)
MA-600-WH Consult Dimmer Co. 100-5%
C*L
(Lutron)
MACL-153M Consult Dimmer Co. 100-9%
ELV
(Lutron)
MAELV-600 Consult Dimmer Co. 100-2%
ELV
(Lutron)
NTELV-500 Consult Dimmer Co. 100-12%
U
(Lutron)
PD-5NE-WH Consult Dimmer Co. 100-1%
CL
(Lutron)
PD-6WCL Consult Dimmer Co. 100%-1.1% Drop-out
ELV
(Lutron)
RRD-6NA Consult Dimmer Co. 100-2%
Triac
(Lutron)
S-600P Consult Dimmer Co. 100-8%
ELV
(Lutron)
SELV-300P Consult Dimmer Co. 100-7%
ELV
(Lutron)
TGCL-153P Consult Dimmer Co. 100-2%
