BUILD-YOUR-OWN MULTIPLES

Built on the foundation of an easily configurable and expandable modular grid frame system, Build-Your-Own Multiples (BYOM) allow the creation of totally unique, never-before-achievable LED lighting arrays to fulfill both challenging space needs and a designer’s vision. Build-Your-Own Multiples (BYOM) offers three interchangeable LED light modules: general illumination, wall wash, and adjustable spot.

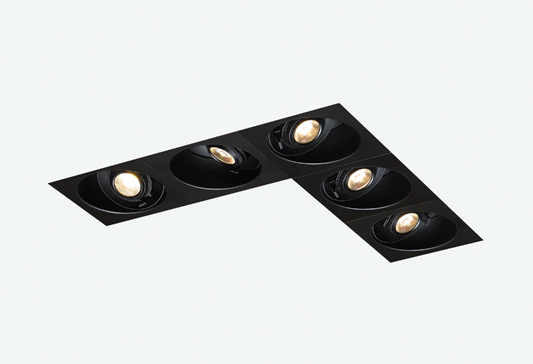

The BYOM grid frame system is highly configurable and expandable offering 21 grid frames of varying sizes that can be combined to create larger grids. The uniquely modular BYOM system allows designers incredible design flexibility. From simple “L” shapes to “steps” or more complicated “X” arrays, BYOM LED light modules are placed into the recessed grid structure to create the desired lighting configuration and effect. To finish the look, metal plaster plates and frame blanks allow the entire system to be mudded in for a completely seamless appearance. Below the ceiling, optional flangeless trims made of cold rolled steel for excellent durability are available in white, black, or satin nickel finishes, as well as square or round aperture configurations to accommodate virtually any aesthetic. The trimless (Open) option boasts an especially attractive, sleek look below the ceiling without use of additional trims.

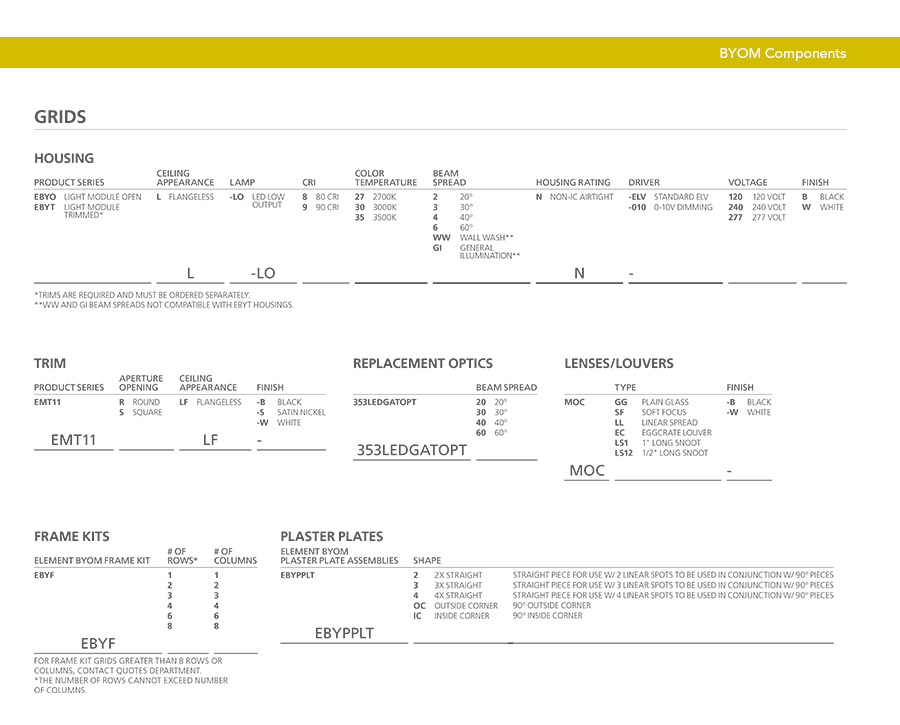

FRAME KIT

21 frame kit options for customized light arrays

Constructed of heavy gauge cold rolled steel

For use in 2x8 construction (minimum joist height)

Non-IC Airtight

Includes integrated junction box approved for branch circuit through wiring

Accommodates up to 3" ceiling thickness

Spot housing allows for post-installation vertical adjustability for variable ceiling conditions

ETL listed. Damp listed.

LIGHT MODULES

Spot Module
- 35° tilt and 360° rotation with tool-free locking
-Field-changeable optic: 20°, 30°, 40°, 60°
- Accepts 2 lenses, ordered separately
- Available Open Flangeless and Trimmed Flangeless

General Illumination Module
- Lambertian lensing
- Available Open Flangeless

Wall Wash Module
- Asymmetric distribution
- Available Open Flangeless

Fully contained and modular design for ease of install and maintenance

5"x 5" ceiling opening per spot

Light modules each ship with 5” x 5” housing and driver

Standard finishes: Black or White powder coat

Consult Quotes Department for custom finish options



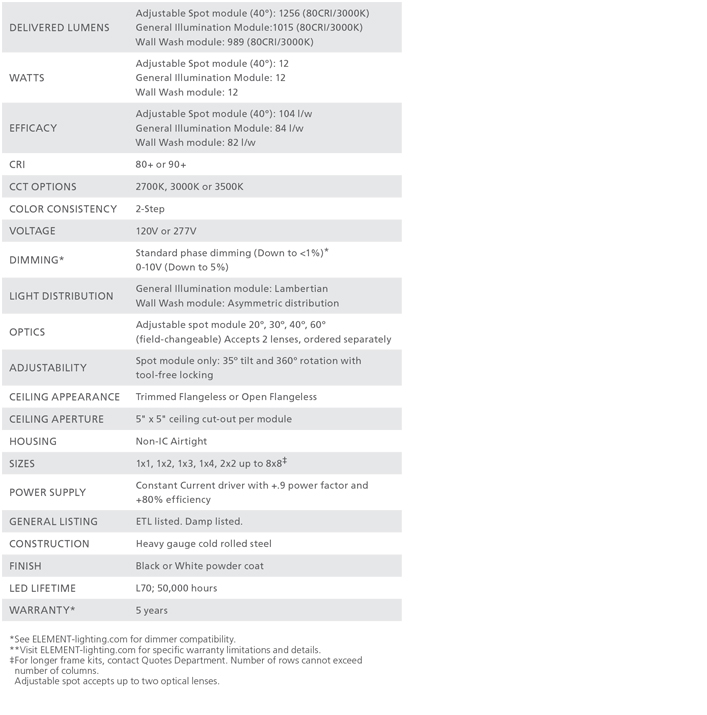

OUTPUT & CONSUMPTION

- Spot module, 1050 lumens, consuming 12.5 watts
- General Illumination module, 850 lumens, consuming 14 watts
- Wall Wash module, 830 lumens, consuming 14 watts

CCT options: 2700K, 3000K or 3500K

CRI options: 80+ or 90+ CRI

Minimum 3-step color binning

Consult Quotes Department for custom CCT, CRI options and outputs

DRIVER & DIMMING

Voltage options: 120V, 240V or 277V

Driver efficiency: >85%

Power factor: 0.98

Dimming options: ELV or 0-10V

Smooth dimming to 2%-15% depending on dimmer

See below for dimmer compatibility


Product Images

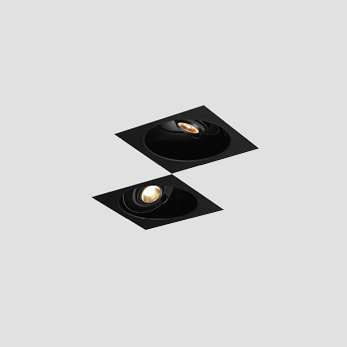

2-Light Zig Zag

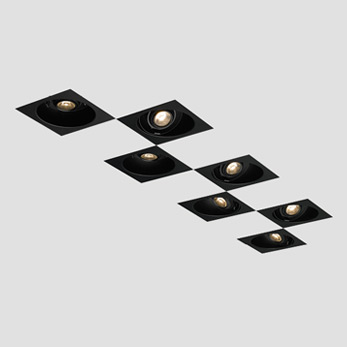

7-Light Zig Zag

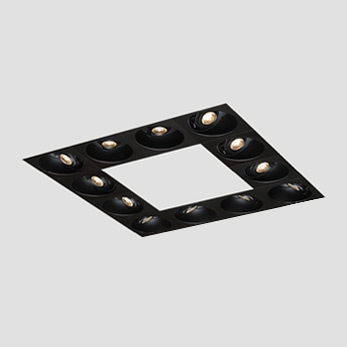

Square Pattern

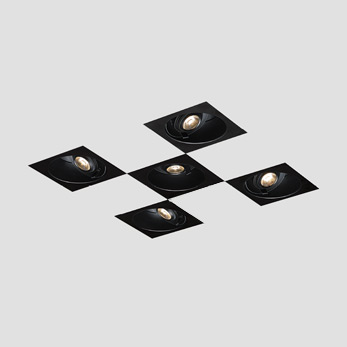

X Pattern
Every ELEMENT Multiple trim is made of cold rolled steel. No seams. No warping. No sagging.

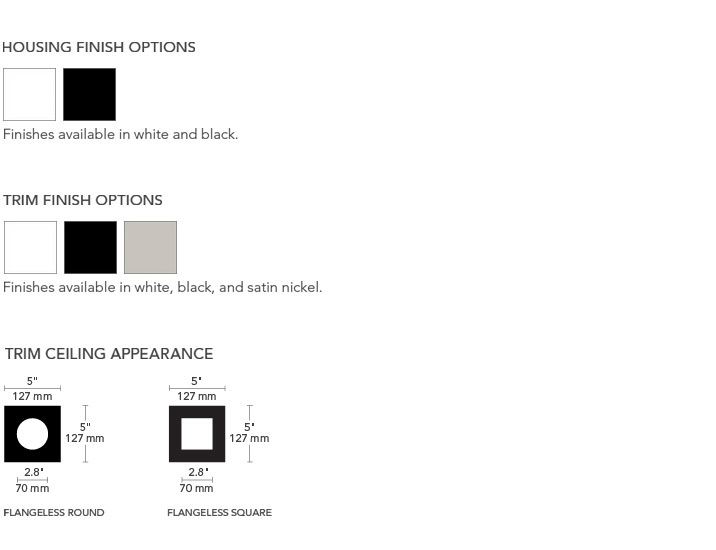

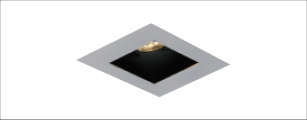

SQUARE TRIMS


FLANGELESS FLAT

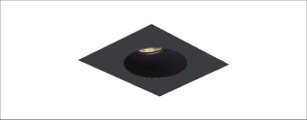

ROUND TRIMS


FLANGELESS FLAT




GENERAL ILLUMNIATION

WALL WASH

SPOT MODULE
2015 Product Innovation Award Winner
SEAMLESS INSTALLATION:
Extruded and precision welded aluminum plaster plates are available to accommodate all configurations and allow the entire BYOM system to be mudded-in for a completely seamless appearance regardless of the complexity of the pattern you create.

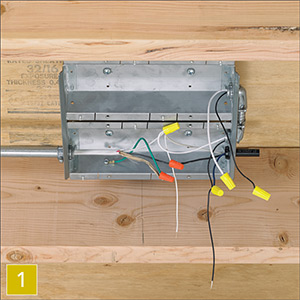

BYOM frame (as required for light array design) is mounted into ceiling joists. 2x2 frame kit shown.

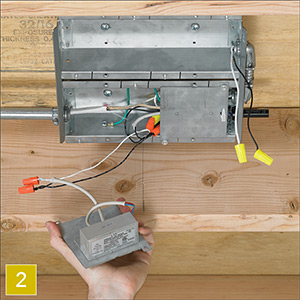

Driver modules are installed (per the light array design) and wired together. Blank plates are installed where there will be no spot housing.

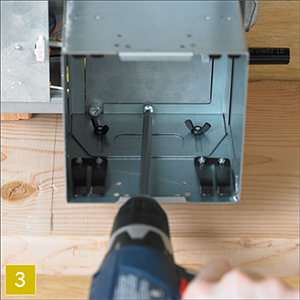

Install housings with screws provided.

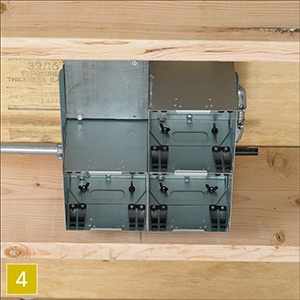

Complete the light array design.

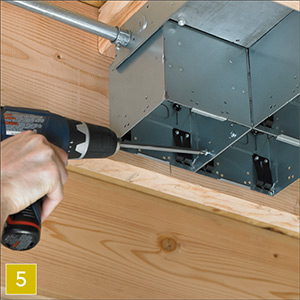

Connect adjacent housings with screws provided.

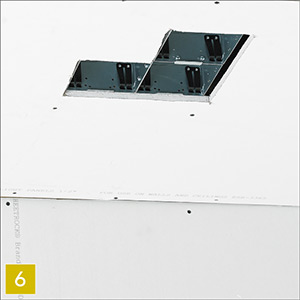

Mount wall board to ceiling outlining the light array design.

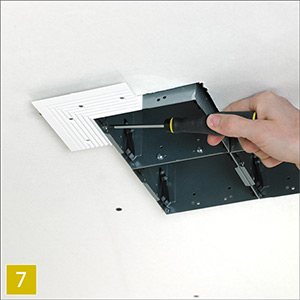

Attach plaster plates with provided screws after lowering the housings using wing nuts positioned inside the housings.

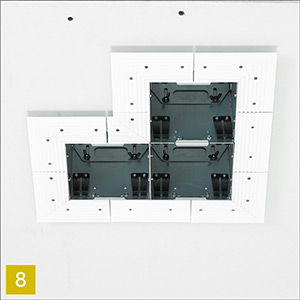

Add plaster plates to outline housing apertures. Raise housings flush with ceiling and secure with wing nuts positioned inside the housings.

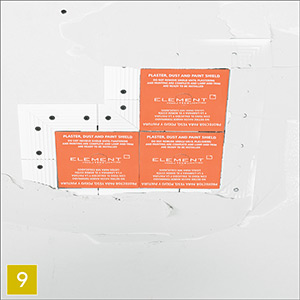

Use included cardboard inserts to prevent mudding inside aperture. Skim coat around the plaster plates up to the aperture(s) for a seamless appearance.

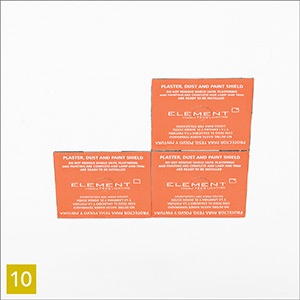

Sand and paint ceiling.

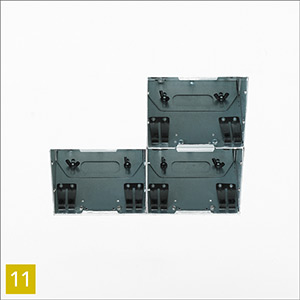

Remove cardboard inserts.

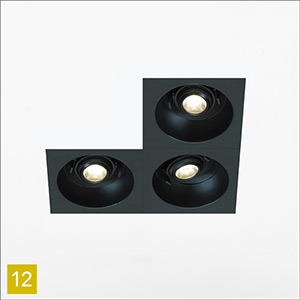

Install spot modules and flangeless trims (if specified).





Use the Build-Your-Own Multiples Configurator as a tool to facilitate your lighting design process. Its intuitive user interface and simple step-by-step process lets you create hundreds of totally custom lighting arrays to help meet your project’s needs and achieve your design vision. Once your design is complete, the Configurator supplies a complete bill of materials including a detailed installation shop drawing, both of which can be emailed to yourself or a colleague.

Configure a system now.
