4" LED PRO SERIES ADJUSTABLE

The Element 4" Pro Series Adjustable downlight features full adjustability with lockable, tool-free hot aiming, including patented high/low lamp positioning. Engineered with a precision diffuser and Solite soft focus lens that eliminates hot spots, direct visibility into the housing, and delivers a clean aperture and ceiling aesthetic. Complementing the Element 4" Pro Series Fixed downlight, the Adjustable is offered in a variety of options, including output, beam spreads and the choice of Static White, Warm Dim or Tunable White to complete any commercial installation.

  • 1-step static white, 2-step warm dim and tunable white
  • Solite Soft Focus Lens plus Diffuser Standard
  • Tool-Free Aiming/Locking: 0-40° Tilt, 361° Rotation
  • Patented High/Low Lamp Positioning
  • Standard Triac/ELV Dimming Down to 1%
  • Lutron/eldoLED options

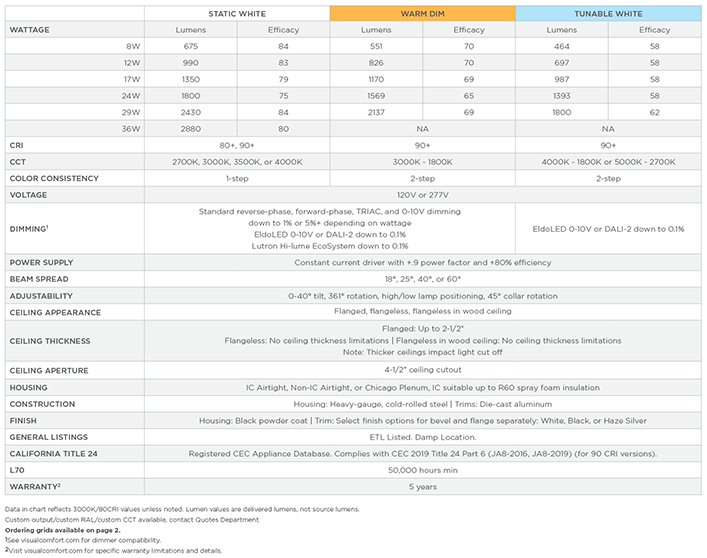

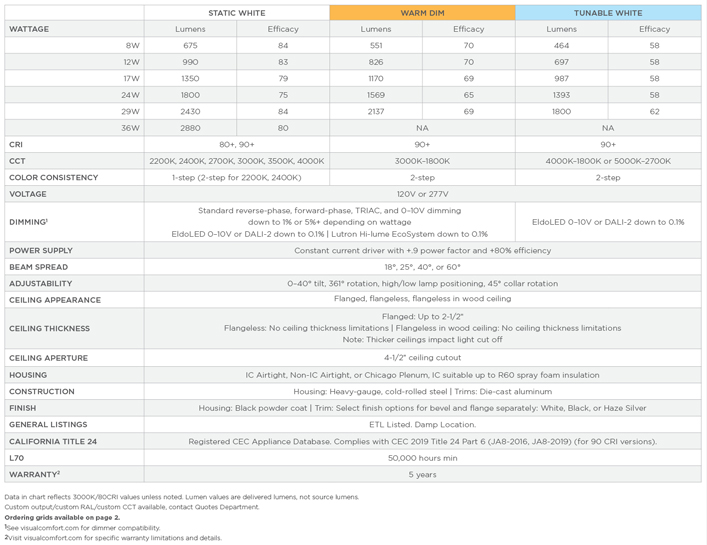

  • Specification Chart



    Trims

    Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


    SQUARE TRIMS

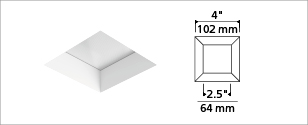

    FLANGELESS REGRESSED

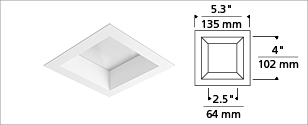

    FLANGED REGRESSED

    ROUND TRIMS

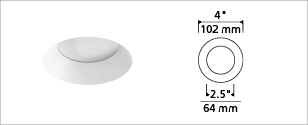

    FLANGELESS REGRESSED

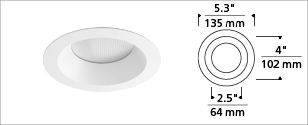

    FLANGED REGRESSED


    Finishes

    No Flange White Flange Black Flange Haze Silver Flange

    Haze Silver Bevel

    White Flange, Haze Silver Bevel

    Black Flange, Haze Silver Bevel

    Haze Silver Flange, Haze Silver Bevel

    Black Bevel

    White Flange, Black Bevel

    Black Flange, Black Bevel

    White Bevel

    White Flange, White Bevel

    Black Flange, White Bevel

    Housings

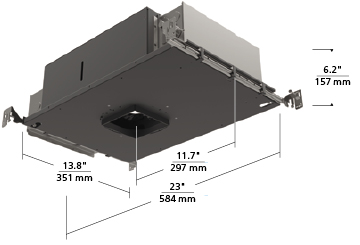

    E4NGEMH
    EMERGENCY BATTERY NON-IC AIRTIGHT

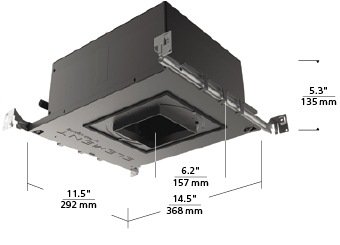

    E4NGH
    IC AIRTIGHT / NON-IC / CHICAGO PLENUM

    Installation

    Flangeless Installation

    Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.


    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Tighten four allen screws to engage side springs, securing plaster plate to ceiling and housing aperture.




    Plaster plate includes cardboard insert to prevent mudding inside aperture and provide uniform ceiling appearance.


    Sand and paint ceiling and insert trim.


    Applications

    International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
