3" LED Shallow Adjustable Downlight


downloads
spec sheet
instruction sheet
IES files
IES Files
Dimmer Compatibility
"Why ELEMENT" Downlight Brochure
Building Awareness & Education
3" Mud/Plaster plate LED/Halogen options


Product Information

3" LED SHALLOW ADJUSTABLE DOWNLIGHT

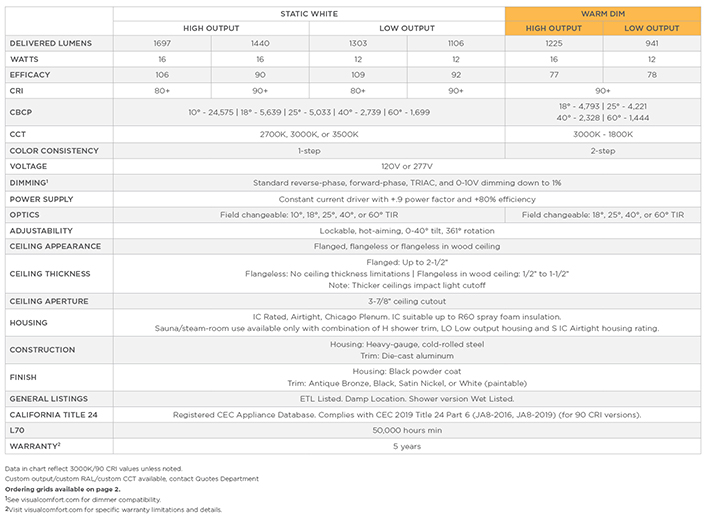

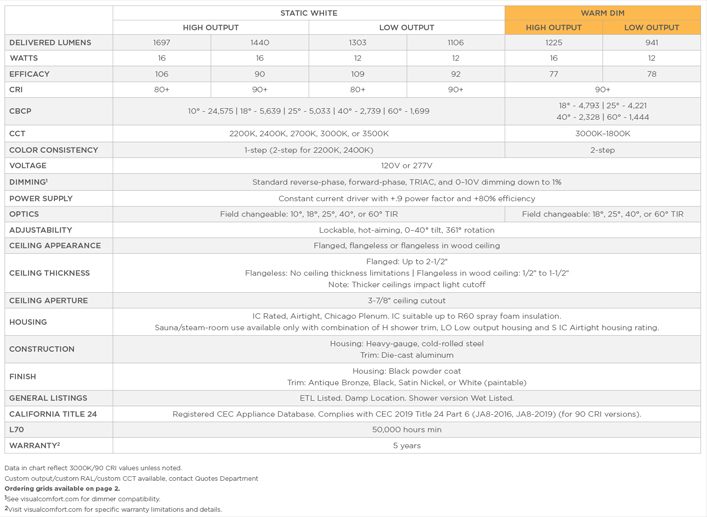

Specification Chart



Trims

Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


SQUARE TRIMS

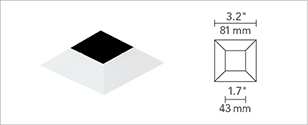

FLANGELESS BEVEL

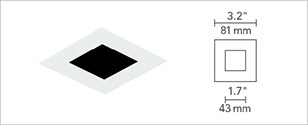

FLANGELESS FLAT

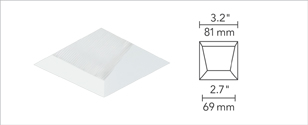

FLANGELESS WALL WASH

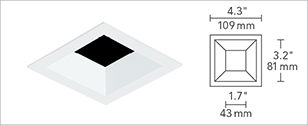

FLANGED BEVEL

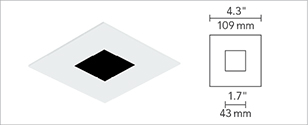

FLANGED FLAT

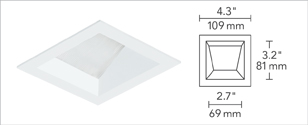

FLANGED WALL WASH

ROUND TRIMS

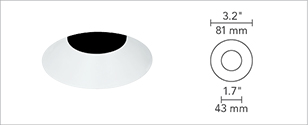

FLANGELESS BEVEL

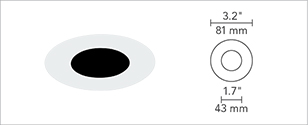

FLANGELESS FLAT

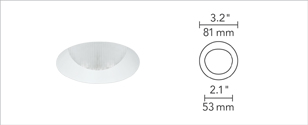

FLANGELESS WALL WASH

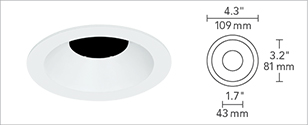

FLANGED BEVEL


FLANGED FLAT

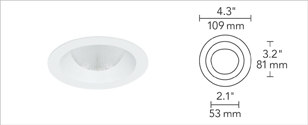

FLANGED WALL WASH


Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

Housings

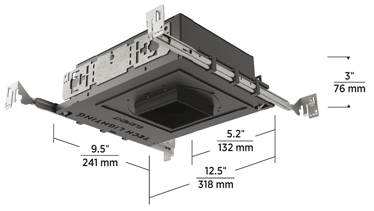

SHALLOW CHICAGO PLENUM

SHALLOW IC

Installation

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


Mount wall board to ceiling and walls.




Attach plaster plate to the aperture using supplied hardware.


Skim coat around the plaster plate and up to the aperture for a seamless appearance.

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
