3" LED FIXED DOWNLIGHT

The ELEMENT 3” Next Generation fixed recessed downlight features a patented high/low lamp positioning which allows the LED to be positioned closer to the aperture for maximum light output and efficiency or higher to minimize glare and flash on the trim. Options include premium warm dimming options, Xicato and Xicato Artist Series LED options, flanged or flangeless trim options including a flangeless wood ceiling option.

  • Housing size reduced 60%
  • Patented High/Low Lamp Positioning
  • 2-step Standard
  • Standard Triac/ELV dimming to less than 1%
  • Trim Reflector Options
  • Solite™ Soft Focus Lens Option

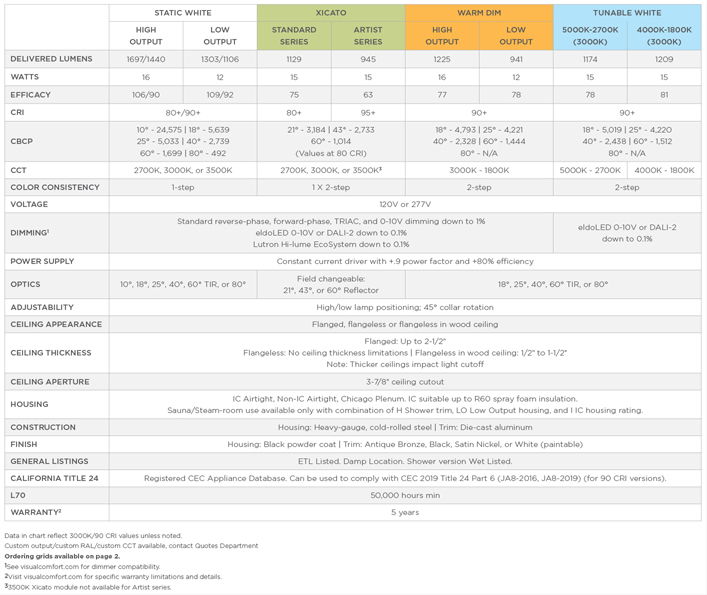

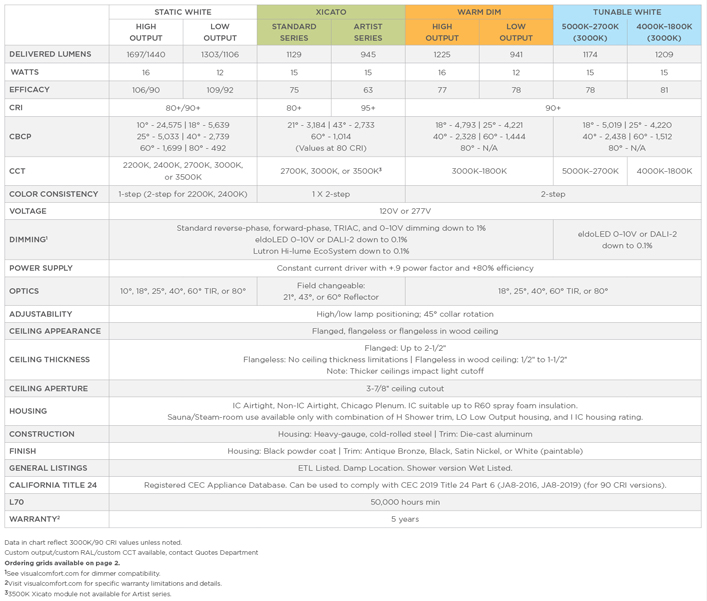

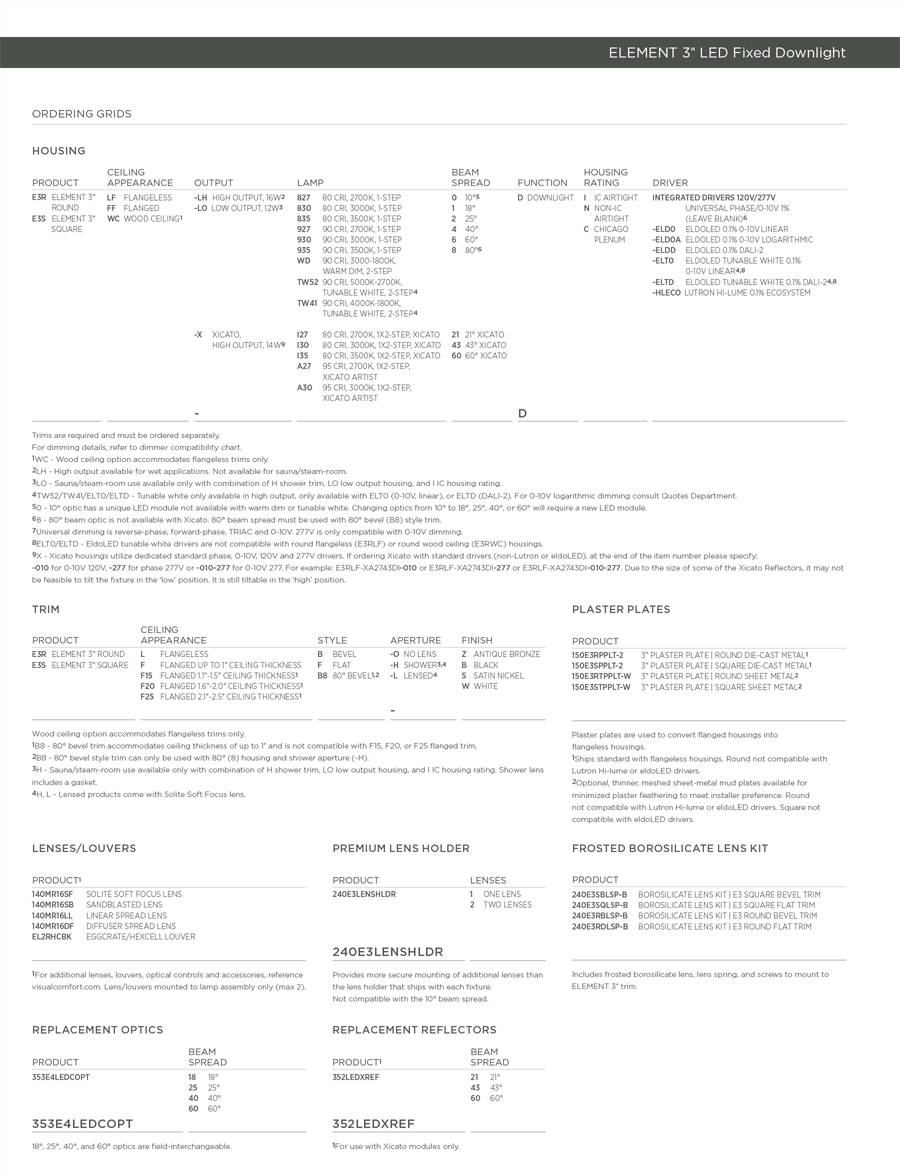

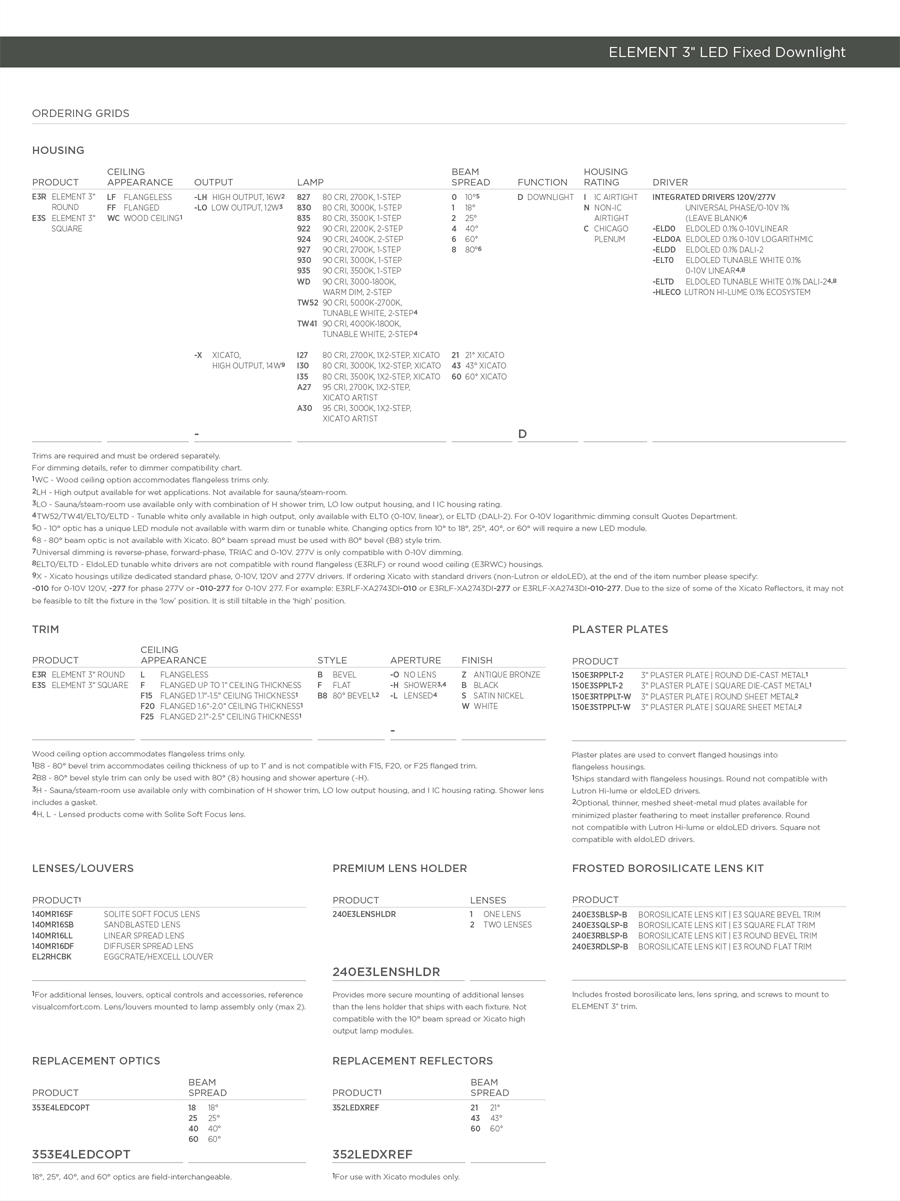

  • Specification Chart



    Trims

    Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.

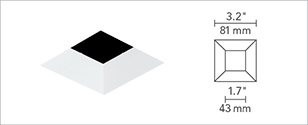

    SQUARE TRIMS


    FLANGELESS BEVEL

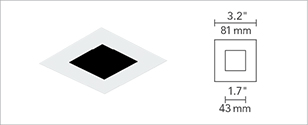

    FLANGELESS FLAT

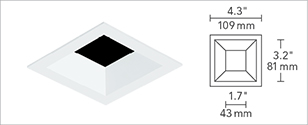

    FLANGED BEVEL

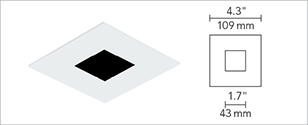

    FLANGED FLAT

    ROUND TRIMS

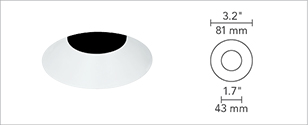

    FLANGELESS BEVEL

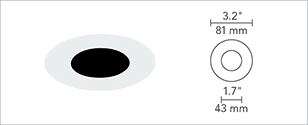

    FLANGELESS FLAT

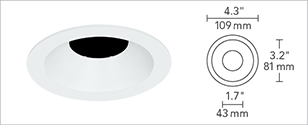

    FLANGED BEVEL


    FLANGED FLAT


    AVAILABLE FINISHES

    Antique Bronze
    Black
    Satin Nickel
    White
    Finishes available in antique bronze, black, satin nickel, white (paintable).

    Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

    Trim-Mounted Reflectors

    ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
    • - Can be easily installed or removed
    • - Mounts to existing trim
    • - Compatible with Fixed and Adjustable Housings
    • - Finish Options: Anodized Gold (G) or Anodized Black (B)




    shown in gold
    (below ceiling view)

    shown in gold
    (below ceiling view)

    black reflector insert

    shown in gold
    (trim mounted)



    Click here to download the Reflectors specification sheet.
    Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

    Housings


    CHICAGO PLENUM

    IC AIRTIGHT

    NON-IC AIRTIGHT

    Awards

    Lightfair International: Best In Category

    Dimming

    ELEMENT 3"
    DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
    OUTPUT RANGE
    COMMENTS
    Dimming Module
    (Crestron)
    CLS-C6 Consult Dimmer Co. 100% - 13%
    Dimming Module
    (Crestron)
    CLS-C6EX Consult Dimmer Co. 100% - 13%
    Dimming Module
    (Crestron)
    CLS-C6M Consult Dimmer Co. 100% - 13%
    Dimming Module
    (Crestron)
    CLS-C6MEX Consult Dimmer Co. 100% - 13%
    Dimming Module
    (Crestron)
    CLS-C6MRF Consult Dimmer Co. 100% - 13%
    Dimming Module
    (Crestron)
    CLS-C6RF Consult Dimmer Co. 100% - 13%
    Dimming Module
    (Crestron)
    CLS-EXP-DIM Consult Dimmer Co. 100% - 17% 12% low-end on 277V
    Dimming Module
    (Crestron)
    CLS-EXP-DIMU Consult Dimmer Co. N/A Not recommended 120v, 100%-8% on 277v
    Dimming Module
    (Crestron)
    CLW-DELVEX-277-P Consult Dimmer Co. 100% - 5% 277v only
    Dimming Module
    (Crestron)
    CLW-DELVEX-E Consult Dimmer Co. 100% - 12%
    Dimming Module
    (Crestron)
    CLW-DELVEX-P Consult Dimmer Co. 100% - 12%
    Dimming Module
    (Crestron)
    CLW-DIMEX-E N/A N/A Not recommended- some flicker
    Dimming Module
    (Crestron)
    CLW-DIMEX-P N/A N/A Not recommended- some flicker
    Dimming Module
    (Crestron)
    CLW-DIMSWEX-E N/A N/A Not recommended- some flicker
    Dimming Module
    (Crestron)
    CLW-DIMSWEX-P N/A N/A Not recommended- some flicker
    Dimming Module
    (Crestron)
    CLX-1DELV4 Consult Dimmer Co. 100% - 16%
    Dimming Module
    (Crestron)
    CLX-1DIM4 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
    Dimming Module
    (Crestron)
    CLX-1DIM8 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
    Dimming Module
    (Crestron)
    CLX-2DIM2 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
    Dimming Module
    (Crestron)
    CLX-2DIM8 Consult Dimmer Co. 100% - 20% May require firmware, consult Crestron
    Dimming Module
    (Crestron)
    DIN-1DIM4 Consult Dimmer Co. 100% - 12% 100% - 8% ON 277V
    Dimming Module
    (Crestron)
    DIN-1DIMU4 Consult Dimmer Co. 100% - 14%
    Dimming Module
    (Crestron)
    GLX-DIM6 Consult Dimmer Co. 100% - 5% 100% - 7% ON 277V
    Dimming Module
    (Crestron)
    GLXX-2DIM8 Consult Dimmer Co. 100% - 6% 100% - 7% ON 277V
    Dimming Module
    (Crestron)
    P-DIMEX N/A N/A Not recommended- some flicker
    Incandescent
    (Forbes & Lomax)
    600 Watt Incandescent 1 - 6 96% - 15% Do not exceed load listed
    MLV
    (Leviton)
    Model 6613 Not Recommended Not Recommended Limited dimming range, not recommended
    ELV
    (Leviton)
    Model 6615 1 - 18 96% - 20%
    Incandescent
    (Leviton)
    Model 6633 1 - 7 96% - 3% Single fixture will not power at lowest end of dimming range
    UNIV
    (Leviton)
    Model 6672 1 - 12 96% - 25%
    UNIV
    (Leviton)
    Model 6674/IPL06 1 - 12 96% - 4%
    ELV
    (Leviton)
    Model IPE04 1 - 18 96% - 10%
    Incandescent
    (Leviton)
    Model IPI06 1 - 7 96% - 15%
    MLV
    (Leviton)
    Model IPM06 Not Recommended Not Recommended Limited dimming range, not recommended
    UNIV
    (Leviton)
    Model IPSD6/IPVD6 Not Recommended Not Recommended Limited dimming range, not recommended
    Incandescent
    (Leviton)
    Model VP106 1 - 7 96% - 6%
    ELV
    (Leviton)
    Model VPE04 1 - 18 96% - 18%
    MLV
    (Leviton)
    Model VPM06 1 - 12 96% - 5%
    Incandescent
    (Leviton)
    Model VR106 Not Recommended Not Recommended Limited dimming range, not recommended
    ELV
    (Leviton)
    Model VRE04 1 - 18 96% - 10%
    MLV
    (Leviton)
    Model VRM10 1 - 12 96% - 5%
    Incandescent
    (Lutron)
    DV-600P-WH 1 - 3 98% - 1%
    Incandescent
    (Lutron)
    DVCL-153P-WH Not Recommended Not Recommended Buzzing
    ELV
    (Lutron)
    DVELV-303P 1 - 18 97% - 4%
    ELV
    (Lutron)
    HQRD-6NA 1-10 96%-2%
    Dimming Module
    (Lutron)
    HW/LP-RPM-4A-120 1 - 10 100% - 15% High and low-end trim required
    Dimming Module
    (Lutron)
    HW/LP-RPM-4U-120 1 - 10 100% - 13% High and low-end trim required
    Incandescent
    (Lutron)
    MA-600-WH Not Recommended Not Recommended Flicker at low end
    ELV
    (Lutron)
    MRF2-6ELV-120-WH 1 - 18 98% - 2%
    ELV
    (Lutron)
    NTELV-600-WH 1 - 18 98% - 8%
    ELV
    (Lutron)
    NVELV-600-WH 1 - 18 94% - 10%
    ELV
    (Lutron)
    SELV-600-WH 1 - 18 94% - 4%
    Dimming Module
    (Vantage)
    EDIMMOD Min 1 96% - 10% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.
    Dimming Module
    (Vantage)
    RDR4 Min 2 100% - 2% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.
    Dimming Module
    (Vantage)
    SDM12-EM Min 2 95% - 7% Consult dimmer company for max fixtures per dimmer. Recommend PWM, reverse phase.

    ELEMENT 3" Hi Lume Driver- 2 wire dimming only*
    DIMMER PART NUMBER FIXTURES PER DIMMER MEASURED LIGHT
    OUTPUT RANGE
    COMMENTS
    GRAFIK Eye 3000
    (Lutron)
    GRX-3100, GRX-3500 1-10 (per output) 100-1% Set load type before adjusting low-end trim
    HomeWorks QS 1000W(LED)
    (Lutron)
    HQRD-10ND 1-13 100-1% Set load type before adjusting low-end trim
    HomeWorks QS adaptive dimmer
    (Lutron)
    HQRD-6NA 1-8 100-1% Set load type before adjusting low-end trim
    HomeWorks QS 600W (LED)
    (Lutron)
    HQRD-6ND 1-8 100-1% Set load type before adjusting low-end trim
    HomeWorks QS WPM (LED)
    (Lutron)
    HQRJ-WPM-6D-120 1-10 (per output) 100-1% Set load type before adjusting low-end trim
    HomeWorks 1000W dimmer
    (Lutron)
    HRD-10ND, HWD-10ND 1-13 100-1%
    HomeWorks 600W dimmer
    (Lutron)
    HRD-6ND 1-8 100-1%
    HomeWorks WPM
    (Lutron)
    HWI-WPM-6D-120 1-10 (per output) 100-1%
    RPM-4A module (LCP, HomeWorks, GRAFIK Systems, Quantum) (LED)
    (Lutron)
    HW-RPM-4A-120[br]LP-RPM-4A-120 1-13 (per output) 100-1% Set load type before adjusting low-end trim
    RPM-4U module (LCP, HomeWorks, GRAFIK Systems, Quantum) (LED)
    (Lutron)
    HW-RPM-4U-120[br]LP-RPM-4U-120 1-10 (per output) 100-1% Set load type before adjusting low-end trim
    Maestro Wireless
    (Lutron)
    MRF2-6nd-120 1-8 100-1% Do Not Use, Low Level Humming
    Nova T
    (Lutron)
    NTLV-600-CPN0199 1-8 100-1%
    GRAFIK Eye QS
    (Lutron)
    QSGR, QSGRJ 1-10 (per output) 100-1% Set load type before adjusting low-end trim
    RadioRA 1000W
    (Lutron)
    RA-10ND 1-13 100-1%
    RadioRA 600W
    (Lutron)
    RA-6ND 1-8 100-1%
    RadioRa 2 1000W
    (Lutron)
    RRD-10ND 1-13 100-1%
    Radio Ra 2 adaptive dimmer
    (Lutron)
    RRD-6NA 1-8 100-1%
    Stanza
    (Lutron)
    SZ-6ND 1-8 100-1%

    Flangeless Installation

    Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Mount wall board to ceiling and walls.




    Attach plaster plate to the aperture using supplied hardware.


    Skim coat around the plaster plate and up to the aperture for a seamless appearance.
