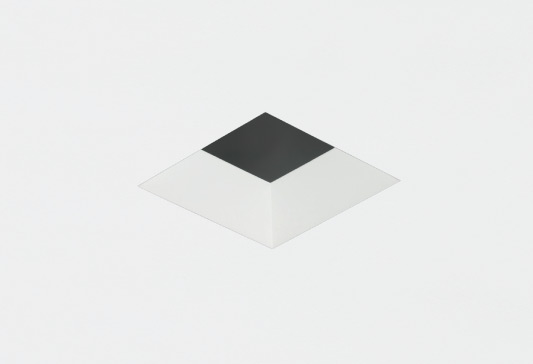

3" HALOGEN LOW-PROFILE FIXED DOWNLIGHT
Small aperture downlight with architectural appearance. 4" height for shallow ceiling installations. Utilizes the same trims as the standard 3" housing so it can be used in the same application only where a shallower housing is required.
Specification Chart
Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.
Finishes available in antique bronze, black, satin nickel, white (paintable).
Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
SQUARE TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
ROUND TRIMS FLANGELESS BEVEL  FLANGELESS FLAT  FLANGED BEVEL  FLANGED FLAT |
AVAILABLE FINISHES
Flangeless trim units (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.
 SHALLOW NON-IC AIRTIGHT
|
Flangeless Installation
Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.
Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).
Mount wall board to ceiling and walls.
Attach plaster plate to the aperture using supplied hardware.
Skim coat around the plaster plate and up to the aperture for a seamless appearance.
