2" LED ULTRA SHALLOW FIXED

The ELEMENT 2" Ultra Shallow Fixed Downlight is the ultimate solution for an aesthetically minimal recessed fixture to fit into the smallest of plenums. With an overall height of only 2.25", the ELEMENT 2" Ultra Shallow Fixed Downlight is rated IC Airtight and still delivers the same performance as the rest of the ELEMENT 2" line.
  • 2.25" overall Housing height
  • 1-step static white, 2-step warm dim and tunable white
  • Lensed and Shower aperture includes Solite Soft Focus lens
  • Interchangeable optics: 20°, 30°, 40° and 60°
  • Flangeless in Wood Ceiling installation available

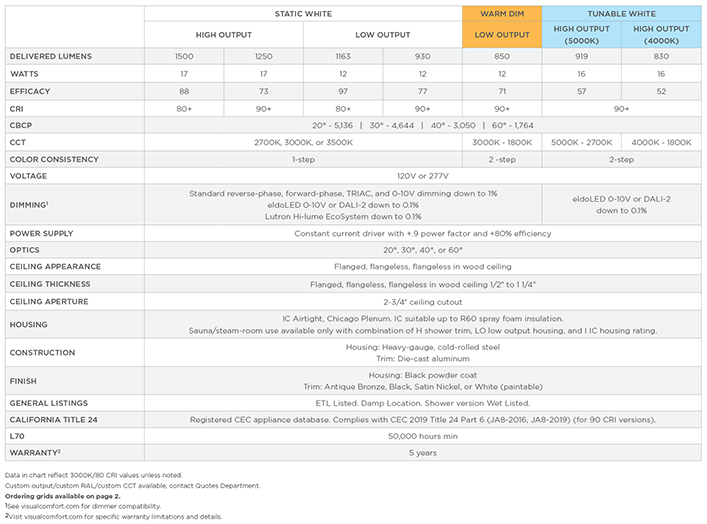

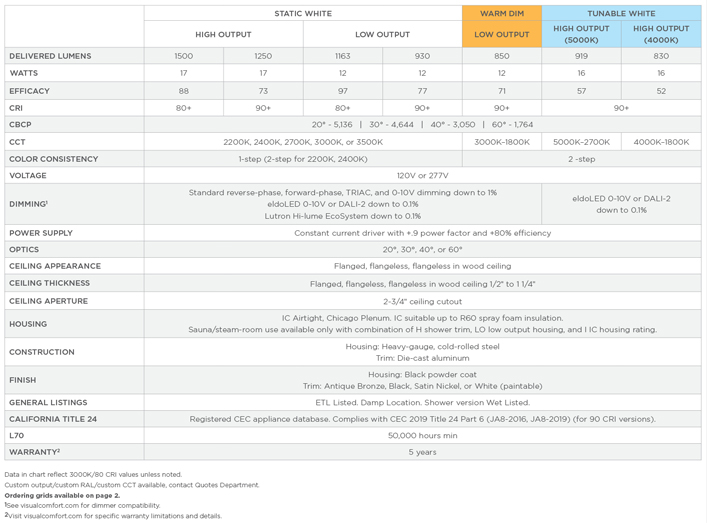

  • Specification Chart



    Trims

    Every ELEMENT trim is die cast aluminum. No seams. No warping. No sagging.


    SQUARE TRIMS

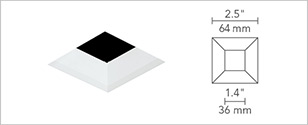

    FLANGELESS BEVEL


    FLANGELESS FLAT

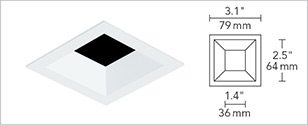

    FLANGED BEVEL

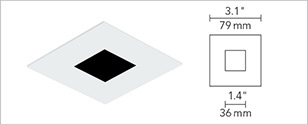

    FLANGED FLAT

    ROUND TRIMS

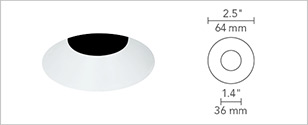

    FLANGELESS BEVEL

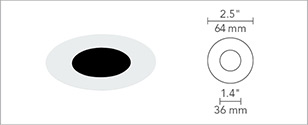

    FLANGELESS FLAT

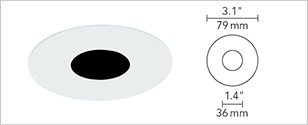

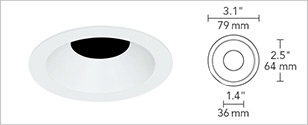

    FLANGED BEVEL


    FLANGED FLAT


    AVAILABLE FINISHES

    Antique Bronze
    Black
    Satin Nickel
    White
    Finishes available in antique bronze, black, satin nickel, white (paintable).

    Flangeless housings (non-wood ceiling option) include die cast plaster plate with no-fill collar that installs after the ceiling to prevent cracking by unifying the plate, ceiling, and housing. Plaster plate is to be mudded over, directly up to the aperture for seamless appearance.

    Trim-Mounted Reflectors

    ELEMENT Specular Reflectors reduce glare while creating a clean, quiet ceiling appearance. Available finishes include Anodized Gold for a decorative accent, or Anodized Black for a truly silent ceiling look. These beautiful trim accessories have been specifically designed to minimize any effect on light performance, color, and output.
    • - Can be easily installed or removed
    • - Mounts to existing trim
    • - Compatible with Fixed and Adjustable Housings
    • - Finish Options: Anodized Gold (G) or Anodized Black (B)




    shown in gold
    (below ceiling view)

    shown in gold
    (below ceiling view)

    black reflector insert

    shown in gold
    (trim mounted)



    Click here to download the Reflectors specification sheet.
    Wood ceiling housings (”WC” designation in the ordering grid) ship with an adjustable trim adapter that inserts into the housing aperture and allows standard ELEMENT 3” flangeless trims to acheive a truly flangeless, flush ceiling appearance in special applications such as wood or stone installation. For use in new construction.

    Housings


    IC AIRTIGHT / CHICAGO PLENUM

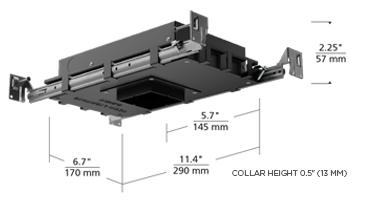

    FLANGED

    IC AIRTIGHT / CHICAGO PLENUM

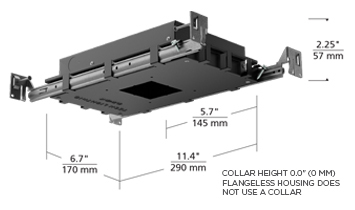

    FLANGELESS

    Installation

    Flangeless Installation

    Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



    Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


    Mount wall board to ceiling and walls.




    Attach plaster plate to the aperture using supplied hardware.


    Skim coat around the plaster plate and up to the aperture for a seamless appearance.

    Applications

    International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
