Product Information

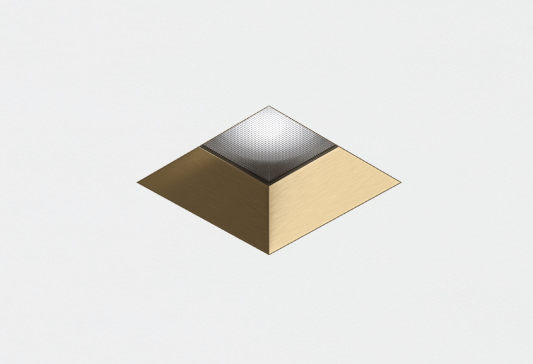

3" LED MARINE GRADE DOWNLIGHT

The ELEMENT 3" Marine Grade Fixed Downlight combines premium architectural aesthetics, exceptional performance, and materials specifically chosen for coastal environments. Corrosion-resistant solid brass trims form a wet-rated seal around the LED module, ensuring durability and long-lasting quality. ELEMENT 3" Marine Grade is the ideal lighting solution for coastal homes, waterfront properties, and seaside establishments.
• Corrosion-resistant solid brass trims ensure long-lasting durability
• 1-step for static white 2700K, 3000K, and 3500K; and 2-step for all other configurations
• Delivers up to 1400 lumens for premium LED performance
• Offers flanged, flangeless, and flangeless in wood ceiling die-cast trims
• Available in IC Airtight
• Natatorium compliant when installed 12 feet above water surface

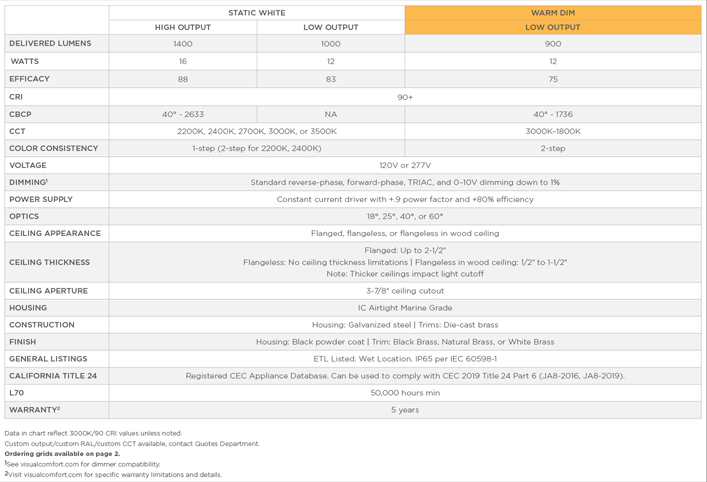

Specification Chart



Installation

Flangeless Installation

Installing ELEMENT is easy. Product includes butterfly brackets and adjustable steel hangar bars.Flanged trims have minimal thickness.Flangless trims include a crack-resistant plaster plate with no-fill collar that installs after the ceiling to prevent plaster cracking by unifying the plate, ceiling, and housing.Integral gunsights for positioning with laser levels ensure consistent alignment during installation.



Install housing to the ceiling joists with the adjustable steel hanger bars (shown below).


Mount wall board to ceiling and walls.




Attach plaster plate to the aperture using supplied hardware.


Skim coat around the plaster plate and up to the aperture for a seamless appearance.

Applications

International Association of Lighting Designers ISO - International Organization for Standards Energy Star Rated
